Schema TrackDiagram.xsd

schema location:	TrackDiagram.xsd
attribute form default:
element form default:	qualified

Elements	Complex types
Document	MessageDef
	TrackDiagramDef

schema location:	MessageEnvelope.xsd
attribute form default:
element form default:

Complex types	Simple types
BusinessUnitDef	ParticipantCode
CommunicationDef
ContactDef
MessageMetaInfoDef
MetaInfoDef
ParticipantCodeDef
ParticipantDef
TransactionDef

schema location:	TD04_core_Subj.xsd
attribute form default:
element form default:	qualified

Complex types	Simple types
AddressDataDef	AddressFieldDef
BusinessDocumentDef	AxlesDef
CL7Def	ChoiceDef
DangerousGoodsDef	CountryCodeDef
DangerWeightDef	CustomsProcedureDef
EmSDef	Decimal3
InformationContactDef	EmptyFullDef
LengthDef	HABISNumberDef
LocationDef	LengthUnit
PackingDef	LoadingRequestDef
PartyDataDef	PlacardDef
RailStationDef	ReferenceText
ReferenceDef	StationCodeDef
StationAreaDef	TemperatureUnit
TemperatureValue	TrackNumberDef
TrainDef	TypeOfTransportDef
WeightDef	VersionDef
	WagonCategoryDef
	WagonNumberDef
	WeightUnit

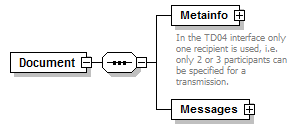

element Document

diagram
properties	content  complex
children	Metainfo Messages
source	<xsd:element name="Document">   <xsd:complexType>     <xsd:sequence>       <xsd:element name="Metainfo" type="MetaInfoDef">         <xsd:annotation>           <xsd:documentation>In the TD04 interface only one recipient is used, i.e. only 2 or 3 participants can be specified for a transmission.</xsd:documentation>           <xsd:documentation>The attribute Alias="HPA" is used for the participant code.</xsd:documentation>         </xsd:annotation>       </xsd:element>       <xsd:element name="Messages">         <xsd:complexType>           <xsd:sequence maxOccurs="unbounded">             <xsd:element name="Message" type="MessageDef"/>           </xsd:sequence>         </xsd:complexType>       </xsd:element>     </xsd:sequence>   </xsd:complexType> </xsd:element>

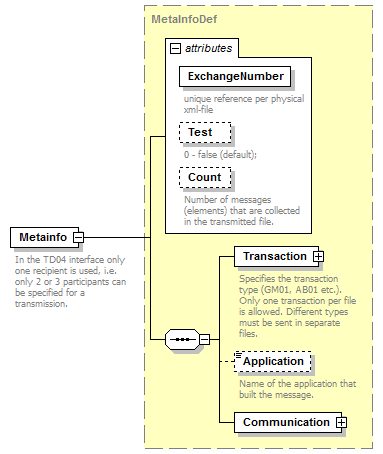

element Document/Metainfo

diagram
type	MetaInfoDef
properties	isRef  0 content  complex
children	Transaction Application Communication
attributes	Name   Type   Use   Default   Fixed   annotation ExchangeNumber derived by: xsd:string required         documentation unique reference per physical xml-file Test xsd:boolean optional   0      documentation 0 - false (default); documentation 1- true; transmission for test purpose Count xsd:positiveInteger          documentation Number of messages (elements) that are collected in the transmitted file.
annotation	documentation In the TD04 interface only one recipient is used, i.e. only 2 or 3 participants can be specified for a transmission. documentation The attribute Alias="HPA" is used for the participant code.
source	<xsd:element name="Metainfo" type="MetaInfoDef">   <xsd:annotation>     <xsd:documentation>In the TD04 interface only one recipient is used, i.e. only 2 or 3 participants can be specified for a transmission.</xsd:documentation>     <xsd:documentation>The attribute Alias="HPA" is used for the participant code.</xsd:documentation>   </xsd:annotation> </xsd:element>

element Document/Messages

diagram
properties	isRef  0 content  complex
children	Message
source	<xsd:element name="Messages">   <xsd:complexType>     <xsd:sequence maxOccurs="unbounded">       <xsd:element name="Message" type="MessageDef"/>     </xsd:sequence>   </xsd:complexType> </xsd:element>

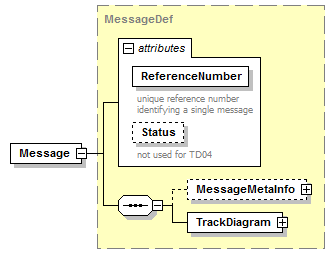

element Document/Messages/Message

diagram
type	MessageDef
properties	isRef  0 content  complex
children	MessageMetaInfo TrackDiagram
attributes	Name   Type   Use   Default   Fixed   annotation ReferenceNumber derived by: xsd:string required         documentation unique reference number identifying a single message documentation Nachrichten-Referenz Status xsd:string optional         documentation not used for TD04
source	<xsd:element name="Message" type="MessageDef"/>

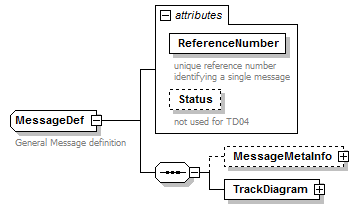

complexType MessageDef

diagram
children	MessageMetaInfo TrackDiagram
used by	element  Document/Messages/Message
attributes	Name   Type   Use   Default   Fixed   annotation ReferenceNumber derived by: xsd:string required         documentation unique reference number identifying a single message documentation Nachrichten-Referenz Status xsd:string optional         documentation not used for TD04
annotation	documentation General Message definition documentation Describes the contents of a message (metainfo and data)
source	<xsd:complexType name="MessageDef">   <xsd:annotation>     <xsd:documentation>General Message definition</xsd:documentation>     <xsd:documentation>Describes the contents of a message (metainfo and data)</xsd:documentation>   </xsd:annotation>   <xsd:sequence>     <xsd:element name="MessageMetaInfo" type="MessageMetaInfoDef" minOccurs="0"/>     <xsd:element name="TrackDiagram" type="TrackDiagramDef"/>   </xsd:sequence>   <xsd:attribute name="ReferenceNumber" use="required">     <xsd:annotation>       <xsd:documentation xml:lang="EN">unique reference number identifying a single message</xsd:documentation>       <xsd:documentation xml:lang="DE">Nachrichten-Referenz</xsd:documentation>     </xsd:annotation>     <xsd:simpleType>       <xsd:restriction base="xsd:string">         <xsd:minLength value="1"/>         <xsd:maxLength value="35"/>       </xsd:restriction>     </xsd:simpleType>   </xsd:attribute>   <xsd:attribute name="Status" type="xsd:string" use="optional">     <xsd:annotation>       <xsd:documentation xml:lang="EN">not used for TD04</xsd:documentation>     </xsd:annotation>   </xsd:attribute> </xsd:complexType>

attribute MessageDef/@ReferenceNumber

type	restriction of xsd:string
properties	isRef  0 use  required
facets	minLength  1 maxLength  35
annotation	documentation unique reference number identifying a single message documentation Nachrichten-Referenz
source	<xsd:attribute name="ReferenceNumber" use="required">   <xsd:annotation>     <xsd:documentation xml:lang="EN">unique reference number identifying a single message</xsd:documentation>     <xsd:documentation xml:lang="DE">Nachrichten-Referenz</xsd:documentation>   </xsd:annotation>   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:minLength value="1"/>       <xsd:maxLength value="35"/>     </xsd:restriction>   </xsd:simpleType> </xsd:attribute>

attribute MessageDef/@Status

type	xsd:string
properties	isRef  0 use  optional
annotation	documentation not used for TD04
source	<xsd:attribute name="Status" type="xsd:string" use="optional">   <xsd:annotation>     <xsd:documentation xml:lang="EN">not used for TD04</xsd:documentation>   </xsd:annotation> </xsd:attribute>

element MessageDef/MessageMetaInfo

diagram
type	MessageMetaInfoDef
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	Contact
source	<xsd:element name="MessageMetaInfo" type="MessageMetaInfoDef" minOccurs="0"/>

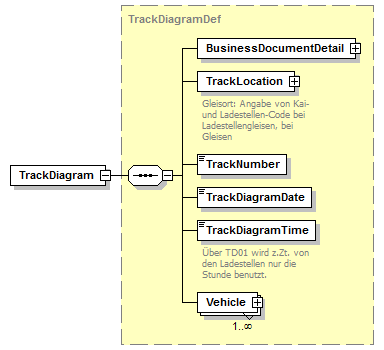

element MessageDef/TrackDiagram

diagram
type	TrackDiagramDef
properties	isRef  0 content  complex
children	BusinessDocumentDetail TrackLocation TrackNumber TrackDiagramDate TrackDiagramTime Vehicle
source	<xsd:element name="TrackDiagram" type="TrackDiagramDef"/>

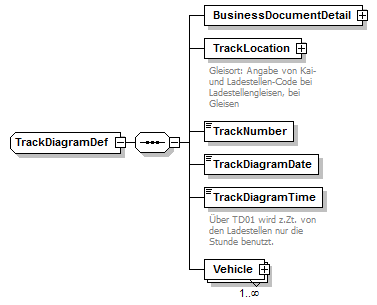

complexType TrackDiagramDef

diagram
children	BusinessDocumentDetail TrackLocation TrackNumber TrackDiagramDate TrackDiagramTime Vehicle
used by	element  MessageDef/TrackDiagram
source	<xsd:complexType name="TrackDiagramDef">   <xsd:sequence>     <xsd:element name="BusinessDocumentDetail" type="BusinessDocumentDef"/>     <xsd:element name="TrackLocation" type="LocationDef">       <xsd:annotation>         <xsd:documentation xml:lang="DE">Gleisort: Angabe von Kai- und Ladestellen-Code bei Ladestellengleisen, bei Gleisen</xsd:documentation>         <xsd:documentation xml:lang="DE">in den Bezirken bleibt Kai-Code leer und im Ladestellen-Code wird der Bezirk angegeben.</xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:element name="TrackNumber" type="TrackNumberDef"/>     <xsd:element name="TrackDiagramDate" type="xsd:date"/>     <xsd:element name="TrackDiagramTime" type="xsd:time">       <xsd:annotation>         <xsd:documentation xml:lang="DE">Über TD01 wird z.Zt. von den Ladestellen nur die Stunde benutzt.</xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:element name="Vehicle" maxOccurs="unbounded">       <xsd:complexType>         <xsd:sequence>           <xsd:element name="Position">             <xsd:simpleType>               <xsd:annotation>                 <xsd:documentation>Sequence number of the wagon.</xsd:documentation>                 <xsd:documentation xml:lang="DE">Position des Wagens im Gleis</xsd:documentation>               </xsd:annotation>               <xsd:restriction base="xsd:positiveInteger">                 <xsd:maxInclusive value="99"/>               </xsd:restriction>             </xsd:simpleType>           </xsd:element>           <xsd:element name="WagonNumber" type="WagonNumberDef" minOccurs="0"/>           <xsd:element name="WagonCategory" type="WagonCategoryDef"/>           <xsd:element name="UnladenWeight" type="WeightDef" minOccurs="0">             <xsd:annotation>               <xsd:documentation xml:lang="DE">Eigengewicht</xsd:documentation>             </xsd:annotation>           </xsd:element>           <xsd:element name="LoadLimitCSlow" type="WeightDef" minOccurs="0">             <xsd:annotation>               <xsd:documentation xml:lang="DE">Lastgrenze: Streckenklasse C, Geschwindigkeit 100 bzw. 90</xsd:documentation>             </xsd:annotation>           </xsd:element>           <xsd:element name="LoadLimitCFast" type="WeightDef" minOccurs="0">             <xsd:annotation>               <xsd:documentation xml:lang="DE">Lastgrenze: Streckenklasse C, Geschwindigkeit 120</xsd:documentation>             </xsd:annotation>           </xsd:element>           <xsd:element name="Axles" type="AxlesDef" minOccurs="0"/>           <xsd:element name="WagonCriteria" minOccurs="0">             <xsd:simpleType>               <xsd:annotation>                 <xsd:documentation xml:lang="DE">Wagenkriterien lt. HABIS Schlüsselverzeichnis A21</xsd:documentation>               </xsd:annotation>               <xsd:restriction base="xsd:string">                 <xsd:maxLength value="2"/>               </xsd:restriction>             </xsd:simpleType>           </xsd:element>           <xsd:element name="YardSector" minOccurs="0">             <xsd:simpleType>               <xsd:annotation>                 <xsd:documentation xml:lang="DE">Stellbereich auf dem Terminal</xsd:documentation>               </xsd:annotation>               <xsd:restriction base="xsd:string">                 <xsd:maxLength value="8"/>               </xsd:restriction>             </xsd:simpleType>           </xsd:element>           <xsd:element name="Remarks" minOccurs="0">             <xsd:simpleType>               <xsd:restriction base="xsd:string">                 <xsd:maxLength value="20"/>               </xsd:restriction>             </xsd:simpleType>           </xsd:element>         </xsd:sequence>       </xsd:complexType>     </xsd:element>   </xsd:sequence> </xsd:complexType>

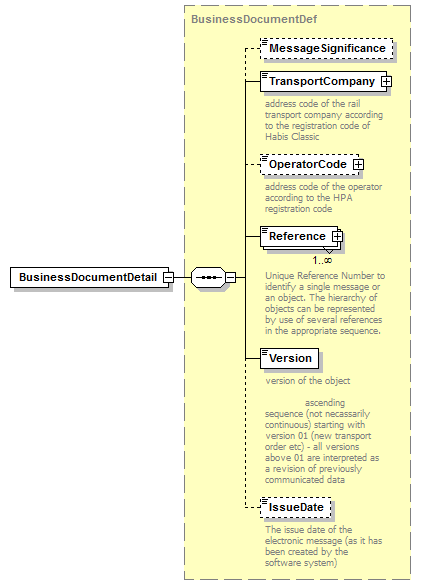

element TrackDiagramDef/BusinessDocumentDetail

diagram
type	BusinessDocumentDef
properties	isRef  0 content  complex
children	MessageSignificance TransportCompany OperatorCode Reference Version IssueDate
source	<xsd:element name="BusinessDocumentDetail" type="BusinessDocumentDef"/>

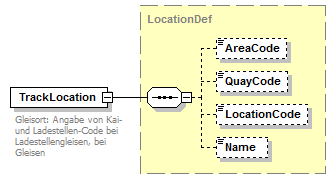

element TrackDiagramDef/TrackLocation

diagram
type	LocationDef
properties	isRef  0 content  complex
children	AreaCode QuayCode LocationCode Name
annotation	documentation Gleisort: Angabe von Kai- und Ladestellen-Code bei Ladestellengleisen, bei Gleisen documentation in den Bezirken bleibt Kai-Code leer und im Ladestellen-Code wird der Bezirk angegeben.
source	<xsd:element name="TrackLocation" type="LocationDef">   <xsd:annotation>     <xsd:documentation xml:lang="DE">Gleisort: Angabe von Kai- und Ladestellen-Code bei Ladestellengleisen, bei Gleisen</xsd:documentation>     <xsd:documentation xml:lang="DE">in den Bezirken bleibt Kai-Code leer und im Ladestellen-Code wird der Bezirk angegeben.</xsd:documentation>   </xsd:annotation> </xsd:element>

element TrackDiagramDef/TrackNumber

diagram
type	TrackNumberDef
properties	isRef  0 content  simple
facets	pattern  \d{3}
source	<xsd:element name="TrackNumber" type="TrackNumberDef"/>

element TrackDiagramDef/TrackDiagramDate

diagram
type	xsd:date
properties	isRef  0 content  simple
source	<xsd:element name="TrackDiagramDate" type="xsd:date"/>

element TrackDiagramDef/TrackDiagramTime

diagram
type	xsd:time
properties	isRef  0 content  simple
annotation	documentation Über TD01 wird z.Zt. von den Ladestellen nur die Stunde benutzt.
source	<xsd:element name="TrackDiagramTime" type="xsd:time">   <xsd:annotation>     <xsd:documentation xml:lang="DE">Über TD01 wird z.Zt. von den Ladestellen nur die Stunde benutzt.</xsd:documentation>   </xsd:annotation> </xsd:element>

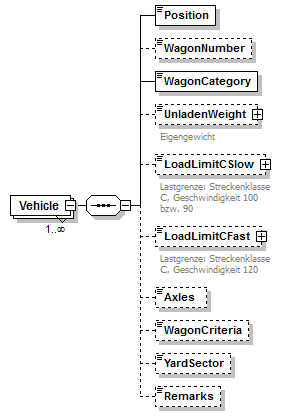

element TrackDiagramDef/Vehicle

diagram
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	Position WagonNumber WagonCategory UnladenWeight LoadLimitCSlow LoadLimitCFast Axles WagonCriteria YardSector Remarks
source	<xsd:element name="Vehicle" maxOccurs="unbounded">   <xsd:complexType>     <xsd:sequence>       <xsd:element name="Position">         <xsd:simpleType>           <xsd:annotation>             <xsd:documentation>Sequence number of the wagon.</xsd:documentation>             <xsd:documentation xml:lang="DE">Position des Wagens im Gleis</xsd:documentation>           </xsd:annotation>           <xsd:restriction base="xsd:positiveInteger">             <xsd:maxInclusive value="99"/>           </xsd:restriction>         </xsd:simpleType>       </xsd:element>       <xsd:element name="WagonNumber" type="WagonNumberDef" minOccurs="0"/>       <xsd:element name="WagonCategory" type="WagonCategoryDef"/>       <xsd:element name="UnladenWeight" type="WeightDef" minOccurs="0">         <xsd:annotation>           <xsd:documentation xml:lang="DE">Eigengewicht</xsd:documentation>         </xsd:annotation>       </xsd:element>       <xsd:element name="LoadLimitCSlow" type="WeightDef" minOccurs="0">         <xsd:annotation>           <xsd:documentation xml:lang="DE">Lastgrenze: Streckenklasse C, Geschwindigkeit 100 bzw. 90</xsd:documentation>         </xsd:annotation>       </xsd:element>       <xsd:element name="LoadLimitCFast" type="WeightDef" minOccurs="0">         <xsd:annotation>           <xsd:documentation xml:lang="DE">Lastgrenze: Streckenklasse C, Geschwindigkeit 120</xsd:documentation>         </xsd:annotation>       </xsd:element>       <xsd:element name="Axles" type="AxlesDef" minOccurs="0"/>       <xsd:element name="WagonCriteria" minOccurs="0">         <xsd:simpleType>           <xsd:annotation>             <xsd:documentation xml:lang="DE">Wagenkriterien lt. HABIS Schlüsselverzeichnis A21</xsd:documentation>           </xsd:annotation>           <xsd:restriction base="xsd:string">             <xsd:maxLength value="2"/>           </xsd:restriction>         </xsd:simpleType>       </xsd:element>       <xsd:element name="YardSector" minOccurs="0">         <xsd:simpleType>           <xsd:annotation>             <xsd:documentation xml:lang="DE">Stellbereich auf dem Terminal</xsd:documentation>           </xsd:annotation>           <xsd:restriction base="xsd:string">             <xsd:maxLength value="8"/>           </xsd:restriction>         </xsd:simpleType>       </xsd:element>       <xsd:element name="Remarks" minOccurs="0">         <xsd:simpleType>           <xsd:restriction base="xsd:string">             <xsd:maxLength value="20"/>           </xsd:restriction>         </xsd:simpleType>       </xsd:element>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element TrackDiagramDef/Vehicle/Position

diagram
type	restriction of xsd:positiveInteger
properties	isRef  0 content  simple
facets	maxInclusive  99
source	<xsd:element name="Position">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation>Sequence number of the wagon.</xsd:documentation>       <xsd:documentation xml:lang="DE">Position des Wagens im Gleis</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:positiveInteger">       <xsd:maxInclusive value="99"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element TrackDiagramDef/Vehicle/WagonNumber

diagram
type	WagonNumberDef
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  12
source	<xsd:element name="WagonNumber" type="WagonNumberDef" minOccurs="0"/>

element TrackDiagramDef/Vehicle/WagonCategory

diagram
type	WagonCategoryDef
properties	isRef  0 content  simple
facets	minLength  1 maxLength  15
source	<xsd:element name="WagonCategory" type="WagonCategoryDef"/>

element TrackDiagramDef/Vehicle/UnladenWeight

diagram
type	WeightDef
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation unit WeightUnit required
annotation	documentation Eigengewicht
source	<xsd:element name="UnladenWeight" type="WeightDef" minOccurs="0">   <xsd:annotation>     <xsd:documentation xml:lang="DE">Eigengewicht</xsd:documentation>   </xsd:annotation> </xsd:element>

element TrackDiagramDef/Vehicle/LoadLimitCSlow

diagram
type	WeightDef
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation unit WeightUnit required
annotation	documentation Lastgrenze: Streckenklasse C, Geschwindigkeit 100 bzw. 90
source	<xsd:element name="LoadLimitCSlow" type="WeightDef" minOccurs="0">   <xsd:annotation>     <xsd:documentation xml:lang="DE">Lastgrenze: Streckenklasse C, Geschwindigkeit 100 bzw. 90</xsd:documentation>   </xsd:annotation> </xsd:element>

element TrackDiagramDef/Vehicle/LoadLimitCFast

diagram
type	WeightDef
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation unit WeightUnit required
annotation	documentation Lastgrenze: Streckenklasse C, Geschwindigkeit 120
source	<xsd:element name="LoadLimitCFast" type="WeightDef" minOccurs="0">   <xsd:annotation>     <xsd:documentation xml:lang="DE">Lastgrenze: Streckenklasse C, Geschwindigkeit 120</xsd:documentation>   </xsd:annotation> </xsd:element>

element TrackDiagramDef/Vehicle/Axles

diagram
type	AxlesDef
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  99
source	<xsd:element name="Axles" type="AxlesDef" minOccurs="0"/>

element TrackDiagramDef/Vehicle/WagonCriteria

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  2
source	<xsd:element name="WagonCriteria" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation xml:lang="DE">Wagenkriterien lt. HABIS Schlüsselverzeichnis A21</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="2"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element TrackDiagramDef/Vehicle/YardSector

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  8
source	<xsd:element name="YardSector" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation xml:lang="DE">Stellbereich auf dem Terminal</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="8"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element TrackDiagramDef/Vehicle/Remarks

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  20
source	<xsd:element name="Remarks" minOccurs="0">   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="20"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

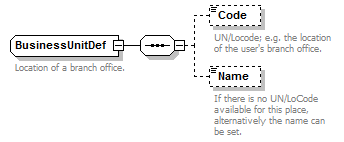

complexType BusinessUnitDef

diagram
children	Code Name
used by	element  ContactDef/BusinessUnit
annotation	documentation Location of a branch office.
source	<xsd:complexType name="BusinessUnitDef">   <xsd:annotation>     <xsd:documentation>Location of a branch office.</xsd:documentation>   </xsd:annotation>   <xsd:sequence>     <xsd:element name="Code" minOccurs="0">       <xsd:annotation>         <xsd:documentation>UN/Locode; e.g. the location of the user's branch office.</xsd:documentation>       </xsd:annotation>       <xsd:simpleType>         <xsd:restriction base="xsd:string">           <xsd:minLength value="1"/>           <xsd:maxLength value="5"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="Name" minOccurs="0">       <xsd:annotation>         <xsd:documentation>If there is no UN/LoCode available for this place, alternatively the name can be set.</xsd:documentation>       </xsd:annotation>       <xsd:simpleType>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="35"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>   </xsd:sequence> </xsd:complexType>

element BusinessUnitDef/Code

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  5
annotation	documentation UN/Locode; e.g. the location of the user's branch office.
source	<xsd:element name="Code" minOccurs="0">   <xsd:annotation>     <xsd:documentation>UN/Locode; e.g. the location of the user's branch office.</xsd:documentation>   </xsd:annotation>   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:minLength value="1"/>       <xsd:maxLength value="5"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element BusinessUnitDef/Name

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  35
annotation	documentation If there is no UN/LoCode available for this place, alternatively the name can be set.
source	<xsd:element name="Name" minOccurs="0">   <xsd:annotation>     <xsd:documentation>If there is no UN/LoCode available for this place, alternatively the name can be set.</xsd:documentation>   </xsd:annotation>   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="35"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

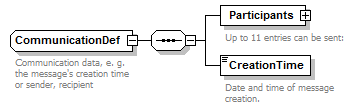

complexType CommunicationDef

diagram
children	Participants CreationTime
used by	element  MetaInfoDef/Communication
annotation	documentation Communication data, e. g. the message's creation time or sender, recipient
source	<xsd:complexType name="CommunicationDef">   <xsd:annotation>     <xsd:documentation>Communication data, e. g. the message's creation time or sender, recipient</xsd:documentation>   </xsd:annotation>   <xsd:sequence>     <xsd:element name="Participants">       <xsd:annotation>         <xsd:documentation>Up to 11 entries can be sent:</xsd:documentation>         <xsd:documentation>SENDER - mandatory with DAKOSY-code</xsd:documentation>         <xsd:documentation>RECIPIENT - mandatory with DAKOSY-Code. Maximum of nine entries is possible.</xsd:documentation>         <xsd:documentation>EDI_PROVIDER</xsd:documentation>       </xsd:annotation>       <xsd:complexType>         <xsd:sequence>           <xsd:element name="Participant" type="ParticipantDef" minOccurs="2" maxOccurs="11"/>         </xsd:sequence>       </xsd:complexType>     </xsd:element>     <xsd:element name="CreationTime" type="xsd:dateTime">       <xsd:annotation>         <xsd:documentation>Date and time of message creation.</xsd:documentation>         <xsd:documentation>Format : 1999-05-31T13:20:00</xsd:documentation>         <xsd:documentation xml:lang="EN">Use local time. Value will be read &quot;as it is&quot;. Please do not send an offset from the UTC.</xsd:documentation>       </xsd:annotation>     </xsd:element>   </xsd:sequence> </xsd:complexType>

element CommunicationDef/Participants

diagram
properties	isRef  0 content  complex
children	Participant
annotation	documentation Up to 11 entries can be sent: documentation SENDER - mandatory with DAKOSY-code documentation RECIPIENT - mandatory with DAKOSY-Code. Maximum of nine entries is possible. documentation EDI_PROVIDER
source	<xsd:element name="Participants">   <xsd:annotation>     <xsd:documentation>Up to 11 entries can be sent:</xsd:documentation>     <xsd:documentation>SENDER - mandatory with DAKOSY-code</xsd:documentation>     <xsd:documentation>RECIPIENT - mandatory with DAKOSY-Code. Maximum of nine entries is possible.</xsd:documentation>     <xsd:documentation>EDI_PROVIDER</xsd:documentation>   </xsd:annotation>   <xsd:complexType>     <xsd:sequence>       <xsd:element name="Participant" type="ParticipantDef" minOccurs="2" maxOccurs="11"/>     </xsd:sequence>   </xsd:complexType> </xsd:element>

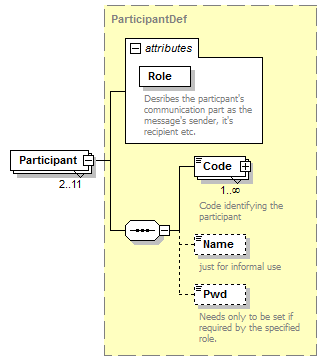

element CommunicationDef/Participants/Participant

diagram
type	ParticipantDef
properties	isRef  0 minOcc  2 maxOcc  11 content  complex
children	Code Name Pwd
attributes	Name   Type   Use   Default   Fixed   annotation Role derived by: xsd:string required         documentation Desribes the particpant's communication part as the message's sender, it's recipient etc. documentation Required entries: documentation RECIPIENT documentation SENDER documentation EDI_PROVIDER
source	<xsd:element name="Participant" type="ParticipantDef" minOccurs="2" maxOccurs="11"/>

element CommunicationDef/CreationTime

diagram
type	xsd:dateTime
properties	isRef  0 content  simple
annotation	documentation Date and time of message creation. documentation Format : 1999-05-31T13:20:00 documentation Use local time. Value will be read "as it is". Please do not send an offset from the UTC.
source	<xsd:element name="CreationTime" type="xsd:dateTime">   <xsd:annotation>     <xsd:documentation>Date and time of message creation.</xsd:documentation>     <xsd:documentation>Format : 1999-05-31T13:20:00</xsd:documentation>     <xsd:documentation xml:lang="EN">Use local time. Value will be read &quot;as it is&quot;. Please do not send an offset from the UTC.</xsd:documentation>   </xsd:annotation> </xsd:element>

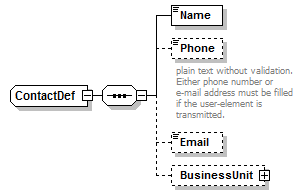

complexType ContactDef

diagram
children	Name Phone Email BusinessUnit
used by	element  MessageMetaInfoDef/Contact
source	<xsd:complexType name="ContactDef">   <xsd:sequence>     <xsd:element name="Name">       <xsd:simpleType>         <xsd:restriction base="xsd:string">           <xsd:minLength value="1"/>           <xsd:maxLength value="35"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="Phone" minOccurs="0">       <xsd:annotation>         <xsd:documentation>plain text without validation. Either phone number or e-mail address must be filled if the user-element is transmitted.</xsd:documentation>       </xsd:annotation>       <xsd:simpleType>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="35"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="Email" minOccurs="0">       <xsd:simpleType>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="70"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="BusinessUnit" type="BusinessUnitDef" minOccurs="0"/>   </xsd:sequence> </xsd:complexType>

element ContactDef/Name

diagram
type	restriction of xsd:string
properties	isRef  0 content  simple
facets	minLength  1 maxLength  35
source	<xsd:element name="Name">   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:minLength value="1"/>       <xsd:maxLength value="35"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element ContactDef/Phone

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  35
annotation	documentation plain text without validation. Either phone number or e-mail address must be filled if the user-element is transmitted.
source	<xsd:element name="Phone" minOccurs="0">   <xsd:annotation>     <xsd:documentation>plain text without validation. Either phone number or e-mail address must be filled if the user-element is transmitted.</xsd:documentation>   </xsd:annotation>   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="35"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element ContactDef/Email

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  70
source	<xsd:element name="Email" minOccurs="0">   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="70"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

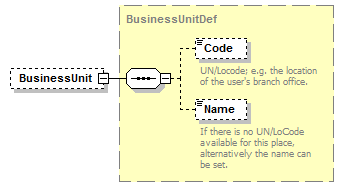

element ContactDef/BusinessUnit

diagram
type	BusinessUnitDef
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	Code Name
source	<xsd:element name="BusinessUnit" type="BusinessUnitDef" minOccurs="0"/>

complexType MessageMetaInfoDef

diagram
children	Contact
used by	element  MessageDef/MessageMetaInfo
annotation	documentation Meta information for each message.
source	<xsd:complexType name="MessageMetaInfoDef">   <xsd:annotation>     <xsd:documentation xml:lang="EN">Meta information for each message.</xsd:documentation>   </xsd:annotation>   <xsd:sequence>     <xsd:element name="Contact" type="ContactDef" minOccurs="0"/>   </xsd:sequence> </xsd:complexType>

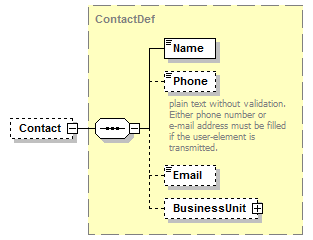

element MessageMetaInfoDef/Contact

diagram
type	ContactDef
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	Name Phone Email BusinessUnit
source	<xsd:element name="Contact" type="ContactDef" minOccurs="0"/>

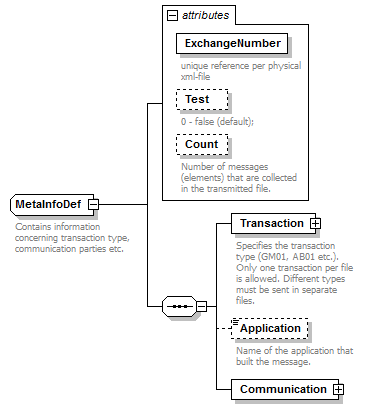

complexType MetaInfoDef

diagram
children	Transaction Application Communication
used by	element  Document/Metainfo
attributes	Name   Type   Use   Default   Fixed   annotation ExchangeNumber derived by: xsd:string required         documentation unique reference per physical xml-file Test xsd:boolean optional   0      documentation 0 - false (default); documentation 1- true; transmission for test purpose Count xsd:positiveInteger          documentation Number of messages (elements) that are collected in the transmitted file.
annotation	documentation Contains information concerning transaction type, communication parties etc.
source	<xsd:complexType name="MetaInfoDef">   <xsd:annotation>     <xsd:documentation>Contains information concerning transaction type, communication parties etc.</xsd:documentation>   </xsd:annotation>   <xsd:sequence>     <xsd:element name="Transaction" type="TransactionDef">       <xsd:annotation>         <xsd:documentation>Specifies the transaction type (GM01, AB01 etc.). Only one transaction per file is allowed. Different types must be sent in separate files.</xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:element name="Application" minOccurs="0">       <xsd:annotation>         <xsd:documentation>Name of the application that built the message.</xsd:documentation>       </xsd:annotation>       <xsd:simpleType>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="35"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="Communication" type="CommunicationDef"/>   </xsd:sequence>   <xsd:attribute name="ExchangeNumber" use="required">     <xsd:annotation>       <xsd:documentation xml:lang="EN">unique reference per physical xml-file</xsd:documentation>     </xsd:annotation>     <xsd:simpleType>       <xsd:restriction base="xsd:string">         <xsd:minLength value="1"/>         <xsd:maxLength value="14"/>       </xsd:restriction>     </xsd:simpleType>   </xsd:attribute>   <xsd:attribute name="Test" type="xsd:boolean" use="optional" default="0">     <xsd:annotation>       <xsd:documentation>0 - false (default);</xsd:documentation>       <xsd:documentation>1- true; transmission for test purpose</xsd:documentation>     </xsd:annotation>   </xsd:attribute>   <xsd:attribute name="Count" type="xsd:positiveInteger">     <xsd:annotation>       <xsd:documentation>Number of messages (elements) that are collected in the transmitted file.</xsd:documentation>     </xsd:annotation>   </xsd:attribute> </xsd:complexType>

attribute MetaInfoDef/@ExchangeNumber

type	restriction of xsd:string
properties	isRef  0 use  required
facets	minLength  1 maxLength  14
annotation	documentation unique reference per physical xml-file
source	<xsd:attribute name="ExchangeNumber" use="required">   <xsd:annotation>     <xsd:documentation xml:lang="EN">unique reference per physical xml-file</xsd:documentation>   </xsd:annotation>   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:minLength value="1"/>       <xsd:maxLength value="14"/>     </xsd:restriction>   </xsd:simpleType> </xsd:attribute>

attribute MetaInfoDef/@Test

type	xsd:boolean
properties	isRef  0 default  0 use  optional
annotation	documentation 0 - false (default); documentation 1- true; transmission for test purpose
source	<xsd:attribute name="Test" type="xsd:boolean" use="optional" default="0">   <xsd:annotation>     <xsd:documentation>0 - false (default);</xsd:documentation>     <xsd:documentation>1- true; transmission for test purpose</xsd:documentation>   </xsd:annotation> </xsd:attribute>

attribute MetaInfoDef/@Count

type	xsd:positiveInteger
properties	isRef  0
annotation	documentation Number of messages (elements) that are collected in the transmitted file.
source	<xsd:attribute name="Count" type="xsd:positiveInteger">   <xsd:annotation>     <xsd:documentation>Number of messages (elements) that are collected in the transmitted file.</xsd:documentation>   </xsd:annotation> </xsd:attribute>

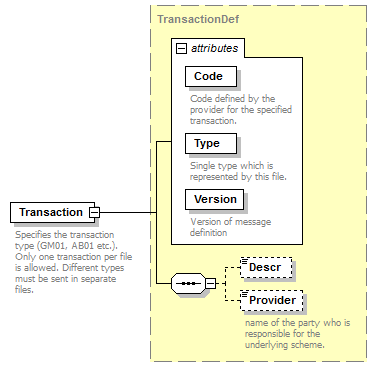

element MetaInfoDef/Transaction

diagram
type	TransactionDef
properties	isRef  0 content  complex
children	Descr Provider
attributes	Name   Type   Use   Default   Fixed   annotation Code derived by: xsd:string required         documentation Code defined by the provider for the specified transaction. Type derived by: xsd:string required         documentation Single type which is represented by this file. documentation A Transaction identified by its code may contain several types identified by their  type. documentation This hierarchy is known from EDIFACT-messages where e. g. the transaction GM01 (code) consists of CUSCAR and APERAK (type). Version derived by: xsd:string required         documentation Version of message definition
annotation	documentation Specifies the transaction type (GM01, AB01 etc.). Only one transaction per file is allowed. Different types must be sent in separate files.
source	<xsd:element name="Transaction" type="TransactionDef">   <xsd:annotation>     <xsd:documentation>Specifies the transaction type (GM01, AB01 etc.). Only one transaction per file is allowed. Different types must be sent in separate files.</xsd:documentation>   </xsd:annotation> </xsd:element>

element MetaInfoDef/Application

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  35
annotation	documentation Name of the application that built the message.
source	<xsd:element name="Application" minOccurs="0">   <xsd:annotation>     <xsd:documentation>Name of the application that built the message.</xsd:documentation>   </xsd:annotation>   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="35"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

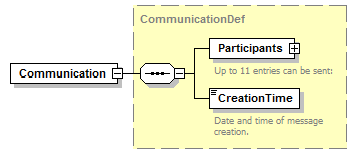

element MetaInfoDef/Communication

diagram
type	CommunicationDef
properties	isRef  0 content  complex
children	Participants CreationTime
source	<xsd:element name="Communication" type="CommunicationDef"/>

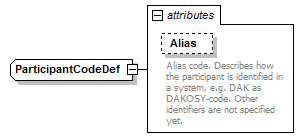

complexType ParticipantCodeDef

diagram
type	extension of ParticipantCode
properties	base  ParticipantCode
used by	element  ParticipantDef/Code
facets	minLength  1 maxLength  17
attributes	Name   Type   Use   Default   Fixed   annotation Alias derived by: xsd:token optional   DAK      documentation Alias code. Describes how the participant is identified in a system, e.g. DAK as DAKOSY-code. Other identifiers are not specified yet.
source	<xsd:complexType name="ParticipantCodeDef">   <xsd:simpleContent>     <xsd:extension base="ParticipantCode">       <xsd:attribute name="Alias" use="optional" default="DAK">         <xsd:annotation>           <xsd:documentation>Alias code. Describes how the participant is identified in a system, e.g. DAK as DAKOSY-code. Other identifiers are not specified yet.</xsd:documentation>         </xsd:annotation>         <xsd:simpleType>           <xsd:restriction base="xsd:token">             <xsd:minLength value="1"/>             <xsd:maxLength value="17"/>           </xsd:restriction>         </xsd:simpleType>       </xsd:attribute>     </xsd:extension>   </xsd:simpleContent> </xsd:complexType>

attribute ParticipantCodeDef/@Alias

type	restriction of xsd:token
properties	isRef  0 default  DAK use  optional
facets	minLength  1 maxLength  17
annotation	documentation Alias code. Describes how the participant is identified in a system, e.g. DAK as DAKOSY-code. Other identifiers are not specified yet.
source	<xsd:attribute name="Alias" use="optional" default="DAK">   <xsd:annotation>     <xsd:documentation>Alias code. Describes how the participant is identified in a system, e.g. DAK as DAKOSY-code. Other identifiers are not specified yet.</xsd:documentation>   </xsd:annotation>   <xsd:simpleType>     <xsd:restriction base="xsd:token">       <xsd:minLength value="1"/>       <xsd:maxLength value="17"/>     </xsd:restriction>   </xsd:simpleType> </xsd:attribute>

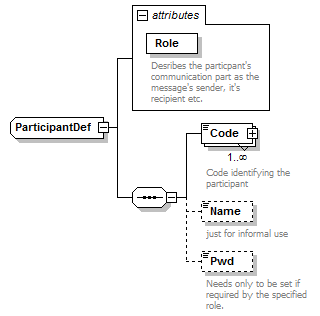

complexType ParticipantDef

diagram
children	Code Name Pwd
used by	element  CommunicationDef/Participants/Participant
attributes	Name   Type   Use   Default   Fixed   annotation Role derived by: xsd:string required         documentation Desribes the particpant's communication part as the message's sender, it's recipient etc. documentation Required entries: documentation RECIPIENT documentation SENDER documentation EDI_PROVIDER
source	<xsd:complexType name="ParticipantDef">   <xsd:sequence>     <xsd:element name="Code" type="ParticipantCodeDef" maxOccurs="unbounded">       <xsd:annotation>         <xsd:documentation xml:lang="EN">Code identifying the participant</xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:element name="Name" minOccurs="0">       <xsd:annotation>         <xsd:documentation>just for informal use</xsd:documentation>       </xsd:annotation>       <xsd:simpleType>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="35"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="Pwd" minOccurs="0">       <xsd:annotation>         <xsd:documentation>Needs only to be set if required by the specified role.</xsd:documentation>       </xsd:annotation>       <xsd:simpleType>         <xsd:restriction base="xsd:string">           <xsd:minLength value="1"/>           <xsd:maxLength value="17"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>   </xsd:sequence>   <xsd:attribute name="Role" use="required">     <xsd:annotation>       <xsd:documentation xml:lang="EN">Desribes the particpant's communication part as the message's sender, it's recipient etc.</xsd:documentation>       <xsd:documentation xml:lang="EN">Required entries:</xsd:documentation>       <xsd:documentation xml:lang="EN">RECIPIENT</xsd:documentation>       <xsd:documentation xml:lang="EN">SENDER</xsd:documentation>       <xsd:documentation xml:lang="EN">EDI_PROVIDER</xsd:documentation>     </xsd:annotation>     <xsd:simpleType>       <xsd:restriction base="xsd:string">         <xsd:minLength value="1"/>         <xsd:maxLength value="17"/>       </xsd:restriction>     </xsd:simpleType>   </xsd:attribute> </xsd:complexType>

attribute ParticipantDef/@Role

type	restriction of xsd:string
properties	isRef  0 use  required
facets	minLength  1 maxLength  17
annotation	documentation Desribes the particpant's communication part as the message's sender, it's recipient etc. documentation Required entries: documentation RECIPIENT documentation SENDER documentation EDI_PROVIDER
source	<xsd:attribute name="Role" use="required">   <xsd:annotation>     <xsd:documentation xml:lang="EN">Desribes the particpant's communication part as the message's sender, it's recipient etc.</xsd:documentation>     <xsd:documentation xml:lang="EN">Required entries:</xsd:documentation>     <xsd:documentation xml:lang="EN">RECIPIENT</xsd:documentation>     <xsd:documentation xml:lang="EN">SENDER</xsd:documentation>     <xsd:documentation xml:lang="EN">EDI_PROVIDER</xsd:documentation>   </xsd:annotation>   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:minLength value="1"/>       <xsd:maxLength value="17"/>     </xsd:restriction>   </xsd:simpleType> </xsd:attribute>

element ParticipantDef/Code

diagram
type	ParticipantCodeDef
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
facets	minLength  1 maxLength  17
attributes	Name   Type   Use   Default   Fixed   annotation Alias derived by: xsd:token optional   DAK      documentation Alias code. Describes how the participant is identified in a system, e.g. DAK as DAKOSY-code. Other identifiers are not specified yet.
annotation	documentation Code identifying the participant
source	<xsd:element name="Code" type="ParticipantCodeDef" maxOccurs="unbounded">   <xsd:annotation>     <xsd:documentation xml:lang="EN">Code identifying the participant</xsd:documentation>   </xsd:annotation> </xsd:element>

element ParticipantDef/Name

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  35
annotation	documentation just for informal use
source	<xsd:element name="Name" minOccurs="0">   <xsd:annotation>     <xsd:documentation>just for informal use</xsd:documentation>   </xsd:annotation>   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="35"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element ParticipantDef/Pwd

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  17
annotation	documentation Needs only to be set if required by the specified role.
source	<xsd:element name="Pwd" minOccurs="0">   <xsd:annotation>     <xsd:documentation>Needs only to be set if required by the specified role.</xsd:documentation>   </xsd:annotation>   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:minLength value="1"/>       <xsd:maxLength value="17"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

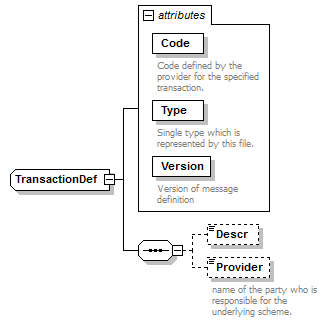

complexType TransactionDef

diagram
children	Descr Provider
used by	element  MetaInfoDef/Transaction
attributes	Name   Type   Use   Default   Fixed   annotation Code derived by: xsd:string required         documentation Code defined by the provider for the specified transaction. Type derived by: xsd:string required         documentation Single type which is represented by this file. documentation A Transaction identified by its code may contain several types identified by their  type. documentation This hierarchy is known from EDIFACT-messages where e. g. the transaction GM01 (code) consists of CUSCAR and APERAK (type). Version derived by: xsd:string required         documentation Version of message definition
source	<xsd:complexType name="TransactionDef">   <xsd:sequence>     <xsd:element name="Descr" minOccurs="0">       <xsd:annotation>         <xsd:documentation xml:lang="EN"/>       </xsd:annotation>       <xsd:simpleType>         <xsd:restriction base="xsd:string">           <xsd:minLength value="1"/>           <xsd:maxLength value="35"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="Provider" minOccurs="0">       <xsd:annotation>         <xsd:documentation>name of the party who is responsible for the underlying scheme.</xsd:documentation>       </xsd:annotation>       <xsd:simpleType>         <xsd:restriction base="xsd:string">           <xsd:minLength value="1"/>           <xsd:maxLength value="35"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>   </xsd:sequence>   <xsd:attribute name="Code" use="required">     <xsd:annotation>       <xsd:documentation>Code defined by the provider for the specified transaction.</xsd:documentation>     </xsd:annotation>     <xsd:simpleType>       <xsd:restriction base="xsd:string">         <xsd:minLength value="1"/>         <xsd:maxLength value="17"/>       </xsd:restriction>     </xsd:simpleType>   </xsd:attribute>   <xsd:attribute name="Type" use="required">     <xsd:annotation>       <xsd:documentation>Single type which is represented by this file.</xsd:documentation>       <xsd:documentation>A Transaction identified by its code may contain several types identified by their  type.</xsd:documentation>       <xsd:documentation>This hierarchy is known from EDIFACT-messages where e. g. the transaction GM01 (code) consists of CUSCAR and APERAK (type).</xsd:documentation>     </xsd:annotation>     <xsd:simpleType>       <xsd:restriction base="xsd:string">         <xsd:minLength value="1"/>         <xsd:maxLength value="17"/>       </xsd:restriction>     </xsd:simpleType>   </xsd:attribute>   <xsd:attribute name="Version" use="required">     <xsd:annotation>       <xsd:documentation>Version of message definition</xsd:documentation>     </xsd:annotation>     <xsd:simpleType>       <xsd:restriction base="xsd:string">         <xsd:minLength value="1"/>         <xsd:maxLength value="17"/>       </xsd:restriction>     </xsd:simpleType>   </xsd:attribute> </xsd:complexType>

attribute TransactionDef/@Code

type	restriction of xsd:string
properties	isRef  0 use  required
facets	minLength  1 maxLength  17
annotation	documentation Code defined by the provider for the specified transaction.
source	<xsd:attribute name="Code" use="required">   <xsd:annotation>     <xsd:documentation>Code defined by the provider for the specified transaction.</xsd:documentation>   </xsd:annotation>   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:minLength value="1"/>       <xsd:maxLength value="17"/>     </xsd:restriction>   </xsd:simpleType> </xsd:attribute>

attribute TransactionDef/@Type

type	restriction of xsd:string
properties	isRef  0 use  required
facets	minLength  1 maxLength  17
annotation	documentation Single type which is represented by this file. documentation A Transaction identified by its code may contain several types identified by their  type. documentation This hierarchy is known from EDIFACT-messages where e. g. the transaction GM01 (code) consists of CUSCAR and APERAK (type).
source	<xsd:attribute name="Type" use="required">   <xsd:annotation>     <xsd:documentation>Single type which is represented by this file.</xsd:documentation>     <xsd:documentation>A Transaction identified by its code may contain several types identified by their  type.</xsd:documentation>     <xsd:documentation>This hierarchy is known from EDIFACT-messages where e. g. the transaction GM01 (code) consists of CUSCAR and APERAK (type).</xsd:documentation>   </xsd:annotation>   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:minLength value="1"/>       <xsd:maxLength value="17"/>     </xsd:restriction>   </xsd:simpleType> </xsd:attribute>

attribute TransactionDef/@Version

type	restriction of xsd:string
properties	isRef  0 use  required
facets	minLength  1 maxLength  17
annotation	documentation Version of message definition
source	<xsd:attribute name="Version" use="required">   <xsd:annotation>     <xsd:documentation>Version of message definition</xsd:documentation>   </xsd:annotation>   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:minLength value="1"/>       <xsd:maxLength value="17"/>     </xsd:restriction>   </xsd:simpleType> </xsd:attribute>

element TransactionDef/Descr

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  35
source	<xsd:element name="Descr" minOccurs="0">   <xsd:annotation>     <xsd:documentation xml:lang="EN"/>   </xsd:annotation>   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:minLength value="1"/>       <xsd:maxLength value="35"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element TransactionDef/Provider

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  35
annotation	documentation name of the party who is responsible for the underlying scheme.
source	<xsd:element name="Provider" minOccurs="0">   <xsd:annotation>     <xsd:documentation>name of the party who is responsible for the underlying scheme.</xsd:documentation>   </xsd:annotation>   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:minLength value="1"/>       <xsd:maxLength value="35"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

simpleType ParticipantCode

type	restriction of xsd:string
used by	complexType  ParticipantCodeDef
facets	minLength  1 maxLength  17
annotation	documentation Code identifying the participant
source	<xsd:simpleType name="ParticipantCode">   <xsd:annotation>     <xsd:documentation xml:lang="EN">Code identifying the participant</xsd:documentation>   </xsd:annotation>   <xsd:restriction base="xsd:string">     <xsd:minLength value="1"/>     <xsd:maxLength value="17"/>   </xsd:restriction> </xsd:simpleType>

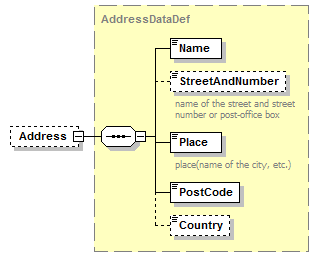

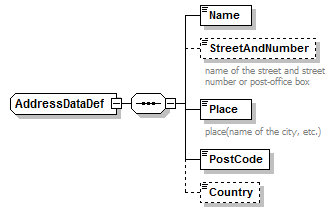

complexType AddressDataDef

diagram
children	Name StreetAndNumber Place PostCode Country
used by	element  PartyDataDef/Address
source	<xsd:complexType name="AddressDataDef">   <xsd:sequence>     <xsd:element name="Name" type="AddressFieldDef"/>     <xsd:element name="StreetAndNumber" type="AddressFieldDef" minOccurs="0">       <xsd:annotation>         <xsd:documentation>name of the street and street number or post-office box</xsd:documentation>         <xsd:documentation xml:lang="DE">Straße und Hausnummer oder Postfach</xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:element name="Place" type="AddressFieldDef">       <xsd:annotation>         <xsd:documentation>place(name of the city, etc.)</xsd:documentation>         <xsd:documentation xml:lang="DE">Ort</xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:element name="PostCode">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation>post code/ zip code</xsd:documentation>           <xsd:documentation xml:lang="DE">Postleitzahl</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:string">           <xsd:minLength value="0"/>           <xsd:maxLength value="9"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="Country" type="CountryCodeDef" minOccurs="0"/>   </xsd:sequence> </xsd:complexType>

element AddressDataDef/Name

diagram
type	AddressFieldDef
properties	isRef  0 content  simple
facets	minLength  0 maxLength  30
source	<xsd:element name="Name" type="AddressFieldDef"/>

element AddressDataDef/StreetAndNumber

diagram
type	AddressFieldDef
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  30
annotation	documentation name of the street and street number or post-office box documentation Straße und Hausnummer oder Postfach
source	<xsd:element name="StreetAndNumber" type="AddressFieldDef" minOccurs="0">   <xsd:annotation>     <xsd:documentation>name of the street and street number or post-office box</xsd:documentation>     <xsd:documentation xml:lang="DE">Straße und Hausnummer oder Postfach</xsd:documentation>   </xsd:annotation> </xsd:element>

element AddressDataDef/Place

diagram
type	AddressFieldDef
properties	isRef  0 content  simple
facets	minLength  0 maxLength  30
annotation	documentation place(name of the city, etc.) documentation Ort
source	<xsd:element name="Place" type="AddressFieldDef">   <xsd:annotation>     <xsd:documentation>place(name of the city, etc.)</xsd:documentation>     <xsd:documentation xml:lang="DE">Ort</xsd:documentation>   </xsd:annotation> </xsd:element>

element AddressDataDef/PostCode

diagram
type	restriction of xsd:string
properties	isRef  0 content  simple
facets	minLength  0 maxLength  9
source	<xsd:element name="PostCode">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation>post code/ zip code</xsd:documentation>       <xsd:documentation xml:lang="DE">Postleitzahl</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:minLength value="0"/>       <xsd:maxLength value="9"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element AddressDataDef/Country

diagram
type	CountryCodeDef
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	pattern  [A-Z][A-Z]
source	<xsd:element name="Country" type="CountryCodeDef" minOccurs="0"/>

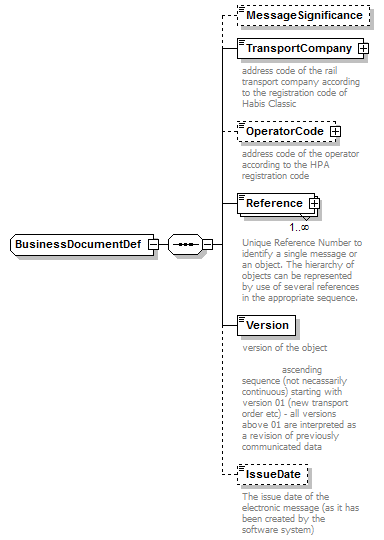

complexType BusinessDocumentDef

diagram
children	MessageSignificance TransportCompany OperatorCode Reference Version IssueDate
used by	element  TrackDiagramDef/BusinessDocumentDetail
source	<xsd:complexType name="BusinessDocumentDef">   <xsd:sequence>     <xsd:element name="MessageSignificance" minOccurs="0">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation>For outbound traffic LD will be sent with the loading data.</xsd:documentation>           <xsd:documentation>For a wagon sequence use PL for a planned sequence, TF for End of Train Formation, DP for Departure.</xsd:documentation>           <xsd:documentation xml:lang="DE">Im Bahnversand wird LD für die Verlade-Daten gesendet.</xsd:documentation>           <xsd:documentation xml:lang="DE">In Reihungen wird PL für Soll-Reihungen, TF für Zugbildungs-Ende, DP für Abfahrt benutzt.</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:string">           <xsd:length value="2"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="TransportCompany">       <xsd:annotation>         <xsd:documentation>address code of the rail transport company according to the registration code of Habis Classic</xsd:documentation>         <xsd:documentation xml:lang="DE">In  Habis Classic registrierter Teilnehmer-Code des EVU.</xsd:documentation>       </xsd:annotation>       <xsd:complexType>         <xsd:simpleContent>           <xsd:extension base="xsd:string">             <xsd:attribute name="codeList">               <xsd:simpleType>                 <xsd:restriction base="xsd:string">                   <xsd:enumeration value="HABIS"/>                 </xsd:restriction>               </xsd:simpleType>             </xsd:attribute>           </xsd:extension>         </xsd:simpleContent>       </xsd:complexType>     </xsd:element>     <xsd:element name="OperatorCode" minOccurs="0">       <xsd:annotation>         <xsd:documentation>address code of the operator according to the HPA registration code</xsd:documentation>         <xsd:documentation xml:lang="DE">bei der HPA registrierter Teilnehmer-Code des Operateurs</xsd:documentation>       </xsd:annotation>       <xsd:complexType>         <xsd:simpleContent>           <xsd:extension base="xsd:string">             <xsd:attribute name="codeList">               <xsd:simpleType>                 <xsd:restriction base="xsd:string">                   <xsd:enumeration value="HPA"/>                 </xsd:restriction>               </xsd:simpleType>             </xsd:attribute>           </xsd:extension>         </xsd:simpleContent>       </xsd:complexType>     </xsd:element>     <xsd:element name="Reference" type="ReferenceDef" maxOccurs="unbounded">       <xsd:annotation>         <xsd:documentation>Unique Reference Number to identify a single message or an object. The hierarchy of objects can be represented by use of several references in the appropriate sequence.</xsd:documentation>         <xsd:documentation xml:lang="DE">Eindeutige Referenznummer zur Identifikation einer Nachricht oder eines Objekts. Die hierarchische Einordnung eines Objekts wird dargestellt durch eine entsprechende Folge von Referenzen.</xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:element name="Version" type="VersionDef">       <xsd:annotation>         <xsd:documentation>version of the object ascending sequence (not necassarily continuous) starting with version 01 (new transport order etc) - all versions above 01 are interpreted as a revision of previously communicated data</xsd:documentation>         <xsd:documentation xml:lang="DE">Version des Objekts aufsteigende Folge (nicht notwendigerweise lückenlos) beginnend mit 01 (z.B. neuer Transportauftrag) - Versionen größer 01 werden als Änderung interpretiert</xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:element name="IssueDate" type="xsd:date" minOccurs="0">       <xsd:annotation>         <xsd:documentation>The issue date of the electronic message (as it has been created by the software system)</xsd:documentation>         <xsd:documentation xml:lang="DE">Datum der Erzeugung einer Nachricht</xsd:documentation>       </xsd:annotation>     </xsd:element>   </xsd:sequence> </xsd:complexType>

element BusinessDocumentDef/MessageSignificance

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	length  2
source	<xsd:element name="MessageSignificance" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation>For outbound traffic LD will be sent with the loading data.</xsd:documentation>       <xsd:documentation>For a wagon sequence use PL for a planned sequence, TF for End of Train Formation, DP for Departure.</xsd:documentation>       <xsd:documentation xml:lang="DE">Im Bahnversand wird LD für die Verlade-Daten gesendet.</xsd:documentation>       <xsd:documentation xml:lang="DE">In Reihungen wird PL für Soll-Reihungen, TF für Zugbildungs-Ende, DP für Abfahrt benutzt.</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:length value="2"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element BusinessDocumentDef/TransportCompany

diagram
type	extension of xsd:string
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation codeList derived by: xsd:string
annotation	documentation address code of the rail transport company according to the registration code of Habis Classic documentation In  Habis Classic registrierter Teilnehmer-Code des EVU.
source	<xsd:element name="TransportCompany">   <xsd:annotation>     <xsd:documentation>address code of the rail transport company according to the registration code of Habis Classic</xsd:documentation>     <xsd:documentation xml:lang="DE">In  Habis Classic registrierter Teilnehmer-Code des EVU.</xsd:documentation>   </xsd:annotation>   <xsd:complexType>     <xsd:simpleContent>       <xsd:extension base="xsd:string">         <xsd:attribute name="codeList">           <xsd:simpleType>             <xsd:restriction base="xsd:string">               <xsd:enumeration value="HABIS"/>             </xsd:restriction>           </xsd:simpleType>         </xsd:attribute>       </xsd:extension>     </xsd:simpleContent>   </xsd:complexType> </xsd:element>

attribute BusinessDocumentDef/TransportCompany/@codeList

type	restriction of xsd:string
properties	isRef  0
facets	enumeration  HABIS
source	<xsd:attribute name="codeList">   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:enumeration value="HABIS"/>     </xsd:restriction>   </xsd:simpleType> </xsd:attribute>

element BusinessDocumentDef/OperatorCode

diagram
type	extension of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation codeList derived by: xsd:string
annotation	documentation address code of the operator according to the HPA registration code documentation bei der HPA registrierter Teilnehmer-Code des Operateurs
source	<xsd:element name="OperatorCode" minOccurs="0">   <xsd:annotation>     <xsd:documentation>address code of the operator according to the HPA registration code</xsd:documentation>     <xsd:documentation xml:lang="DE">bei der HPA registrierter Teilnehmer-Code des Operateurs</xsd:documentation>   </xsd:annotation>   <xsd:complexType>     <xsd:simpleContent>       <xsd:extension base="xsd:string">         <xsd:attribute name="codeList">           <xsd:simpleType>             <xsd:restriction base="xsd:string">               <xsd:enumeration value="HPA"/>             </xsd:restriction>           </xsd:simpleType>         </xsd:attribute>       </xsd:extension>     </xsd:simpleContent>   </xsd:complexType> </xsd:element>

attribute BusinessDocumentDef/OperatorCode/@codeList

type	restriction of xsd:string
properties	isRef  0
facets	enumeration  HPA
source	<xsd:attribute name="codeList">   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:enumeration value="HPA"/>     </xsd:restriction>   </xsd:simpleType> </xsd:attribute>

element BusinessDocumentDef/Reference

diagram
type	ReferenceDef
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
facets	minLength  1 maxLength  35
attributes	Name   Type   Use   Default   Fixed   annotation type derived by: xsd:string
annotation	documentation Unique Reference Number to identify a single message or an object. The hierarchy of objects can be represented by use of several references in the appropriate sequence. documentation Eindeutige Referenznummer zur Identifikation einer Nachricht oder eines Objekts. Die hierarchische Einordnung eines Objekts wird dargestellt durch eine entsprechende Folge von Referenzen.
source	<xsd:element name="Reference" type="ReferenceDef" maxOccurs="unbounded">   <xsd:annotation>     <xsd:documentation>Unique Reference Number to identify a single message or an object. The hierarchy of objects can be represented by use of several references in the appropriate sequence.</xsd:documentation>     <xsd:documentation xml:lang="DE">Eindeutige Referenznummer zur Identifikation einer Nachricht oder eines Objekts. Die hierarchische Einordnung eines Objekts wird dargestellt durch eine entsprechende Folge von Referenzen.</xsd:documentation>   </xsd:annotation> </xsd:element>

element BusinessDocumentDef/Version

diagram
type	VersionDef
properties	isRef  0 content  simple
facets	pattern  \d{2}
annotation	documentation version of the object ascending sequence (not necassarily continuous) starting with version 01 (new transport order etc) - all versions above 01 are interpreted as a revision of previously communicated data documentation Version des Objekts aufsteigende Folge (nicht notwendigerweise lückenlos) beginnend mit 01 (z.B. neuer Transportauftrag) - Versionen größer 01 werden als Änderung interpretiert
source	<xsd:element name="Version" type="VersionDef">   <xsd:annotation>     <xsd:documentation>version of the object ascending sequence (not necassarily continuous) starting with version 01 (new transport order etc) - all versions above 01 are interpreted as a revision of previously communicated data</xsd:documentation>     <xsd:documentation xml:lang="DE">Version des Objekts aufsteigende Folge (nicht notwendigerweise lückenlos) beginnend mit 01 (z.B. neuer Transportauftrag) - Versionen größer 01 werden als Änderung interpretiert</xsd:documentation>   </xsd:annotation> </xsd:element>

element BusinessDocumentDef/IssueDate

diagram
type	xsd:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation The issue date of the electronic message (as it has been created by the software system) documentation Datum der Erzeugung einer Nachricht
source	<xsd:element name="IssueDate" type="xsd:date" minOccurs="0">   <xsd:annotation>     <xsd:documentation>The issue date of the electronic message (as it has been created by the software system)</xsd:documentation>     <xsd:documentation xml:lang="DE">Datum der Erzeugung einer Nachricht</xsd:documentation>   </xsd:annotation> </xsd:element>

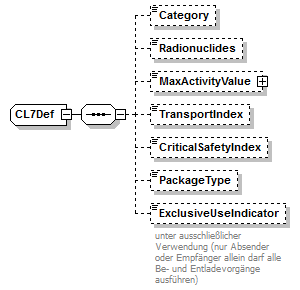

complexType CL7Def

diagram

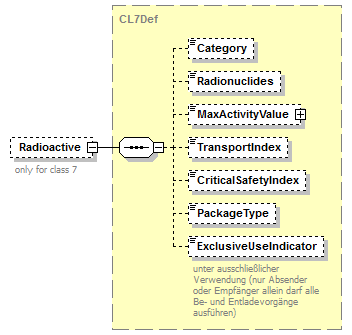

children	Category Radionuclides MaxActivityValue TransportIndex CriticalSafetyIndex PackageType ExclusiveUseIndicator
used by	element  DangerousGoodsDef/Radioactive
source	<xsd:complexType name="CL7Def">   <xsd:sequence>     <xsd:element name="Category" minOccurs="0">       <xsd:simpleType>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="4"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="Radionuclides" minOccurs="0">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation>name of the radionuclides</xsd:documentation>           <xsd:documentation xml:lang="DE">radioaktive Stoffe oder Nuklide</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="70"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="MaxActivityValue" minOccurs="0">       <xsd:complexType>         <xsd:annotation>           <xsd:documentation xml:lang="DE">höchste Aktivität des radioaktiven Inhalts oder Masse der spaltbaren Stoffe</xsd:documentation>         </xsd:annotation>         <xsd:simpleContent>           <xsd:extension base="xsd:integer">             <xsd:attribute name="unit" use="required">               <xsd:simpleType>                 <xsd:annotation>                   <xsd:documentation>BQ = becquerel, or multiple units (MBQ, GBQ, TBQ)</xsd:documentation>                 </xsd:annotation>                 <xsd:restriction base="xsd:string">                   <xsd:enumeration value="BQ"/>                   <xsd:enumeration value="MBQ"/>                   <xsd:enumeration value="GBQ"/>                   <xsd:enumeration value="TBQ"/>                 </xsd:restriction>               </xsd:simpleType>             </xsd:attribute>           </xsd:extension>         </xsd:simpleContent>       </xsd:complexType>     </xsd:element>     <xsd:element name="TransportIndex" minOccurs="0">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation xml:lang="DE">Transportkennzahl</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:decimal">           <xsd:totalDigits value="3"/>           <xsd:fractionDigits value="1"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="CriticalSafetyIndex" minOccurs="0">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation xml:lang="DE">Kritikalitätssicherheitskennzahl</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:decimal">           <xsd:totalDigits value="4"/>           <xsd:fractionDigits value="1"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="PackageType" minOccurs="0">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation xml:lang="DE">Typ des Versandstücks</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="4"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="ExclusiveUseIndicator" type="ChoiceDef" minOccurs="0">       <xsd:annotation>         <xsd:documentation xml:lang="DE">unter ausschließlicher Verwendung (nur Absender oder Empfänger allein darf alle Be- und Entladevorgänge ausführen)</xsd:documentation>       </xsd:annotation>     </xsd:element>   </xsd:sequence> </xsd:complexType>

element CL7Def/Category

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  4
source	<xsd:element name="Category" minOccurs="0">   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="4"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element CL7Def/Radionuclides

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  70
source	<xsd:element name="Radionuclides" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation>name of the radionuclides</xsd:documentation>       <xsd:documentation xml:lang="DE">radioaktive Stoffe oder Nuklide</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="70"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element CL7Def/MaxActivityValue

diagram
type	extension of xsd:integer
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation unit derived by: xsd:string required
source	<xsd:element name="MaxActivityValue" minOccurs="0">   <xsd:complexType>     <xsd:annotation>       <xsd:documentation xml:lang="DE">höchste Aktivität des radioaktiven Inhalts oder Masse der spaltbaren Stoffe</xsd:documentation>     </xsd:annotation>     <xsd:simpleContent>       <xsd:extension base="xsd:integer">         <xsd:attribute name="unit" use="required">           <xsd:simpleType>             <xsd:annotation>               <xsd:documentation>BQ = becquerel, or multiple units (MBQ, GBQ, TBQ)</xsd:documentation>             </xsd:annotation>             <xsd:restriction base="xsd:string">               <xsd:enumeration value="BQ"/>               <xsd:enumeration value="MBQ"/>               <xsd:enumeration value="GBQ"/>               <xsd:enumeration value="TBQ"/>             </xsd:restriction>           </xsd:simpleType>         </xsd:attribute>       </xsd:extension>     </xsd:simpleContent>   </xsd:complexType> </xsd:element>

attribute CL7Def/MaxActivityValue/@unit

type	restriction of xsd:string
properties	isRef  0 use  required
facets	enumeration  BQ enumeration  MBQ enumeration  GBQ enumeration  TBQ
source	<xsd:attribute name="unit" use="required">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation>BQ = becquerel, or multiple units (MBQ, GBQ, TBQ)</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:enumeration value="BQ"/>       <xsd:enumeration value="MBQ"/>       <xsd:enumeration value="GBQ"/>       <xsd:enumeration value="TBQ"/>     </xsd:restriction>   </xsd:simpleType> </xsd:attribute>

element CL7Def/TransportIndex

diagram
type	restriction of xsd:decimal
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	totalDigits  3 fractionDigits  1
source	<xsd:element name="TransportIndex" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation xml:lang="DE">Transportkennzahl</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:decimal">       <xsd:totalDigits value="3"/>       <xsd:fractionDigits value="1"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element CL7Def/CriticalSafetyIndex

diagram
type	restriction of xsd:decimal
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	totalDigits  4 fractionDigits  1
source	<xsd:element name="CriticalSafetyIndex" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation xml:lang="DE">Kritikalitätssicherheitskennzahl</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:decimal">       <xsd:totalDigits value="4"/>       <xsd:fractionDigits value="1"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element CL7Def/PackageType

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  4
source	<xsd:element name="PackageType" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation xml:lang="DE">Typ des Versandstücks</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="4"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element CL7Def/ExclusiveUseIndicator

diagram
type	ChoiceDef
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	enumeration  Y enumeration  N
annotation	documentation unter ausschließlicher Verwendung (nur Absender oder Empfänger allein darf alle Be- und Entladevorgänge ausführen)
source	<xsd:element name="ExclusiveUseIndicator" type="ChoiceDef" minOccurs="0">   <xsd:annotation>     <xsd:documentation xml:lang="DE">unter ausschließlicher Verwendung (nur Absender oder Empfänger allein darf alle Be- und Entladevorgänge ausführen)</xsd:documentation>   </xsd:annotation> </xsd:element>

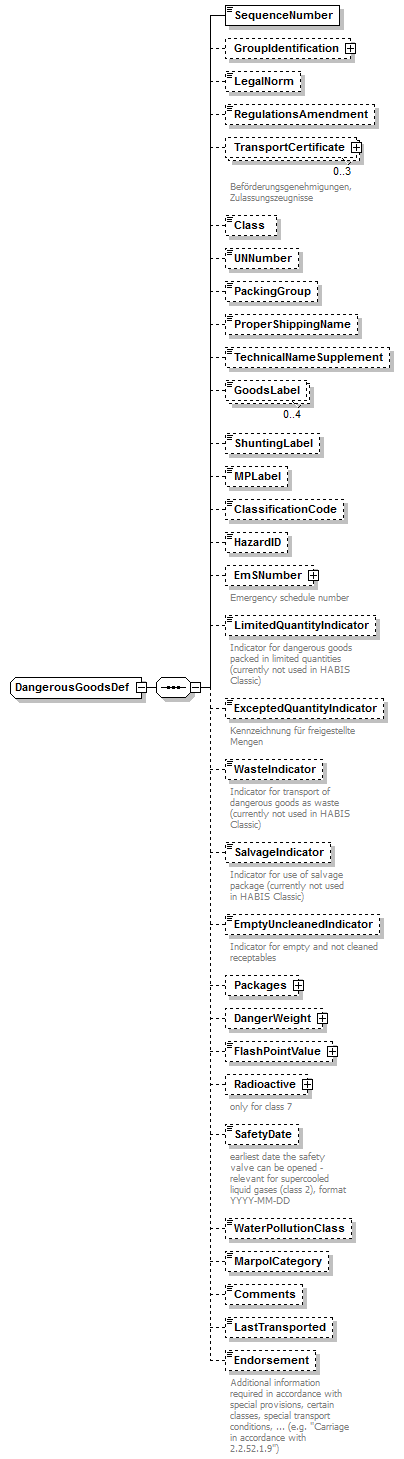

complexType DangerousGoodsDef

diagram
children	SequenceNumber GroupIdentification LegalNorm RegulationsAmendment TransportCertificate Class UNNumber PackingGroup ProperShippingName TechnicalNameSupplement GoodsLabel ShuntingLabel MPLabel ClassificationCode HazardID EmSNumber LimitedQuantityIndicator ExceptedQuantityIndicator WasteIndicator SalvageIndicator EmptyUncleanedIndicator Packages DangerWeight FlashPointValue Radioactive SafetyDate WaterPollutionClass MarpolCategory Comments LastTransported Endorsement
source	<xsd:complexType name="DangerousGoodsDef">   <xsd:sequence>     <xsd:element name="SequenceNumber">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation>used to unambigously identify the DG information within a unit in the communication</xsd:documentation>           <xsd:documentation xml:lang="DE">zur eindeutigen Identifikation der Gefahrgut-Angaben für eine Ladeeinheit</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:positiveInteger">           <xsd:maxInclusive value="999"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="GroupIdentification" minOccurs="0">       <xsd:complexType>         <xsd:sequence>           <xsd:element name="IdentificationMark" minOccurs="0">             <xsd:simpleType>               <xsd:annotation>                 <xsd:documentation>identifier of the group</xsd:documentation>                 <xsd:documentation xml:lang="DE">Gruppen-ID</xsd:documentation>               </xsd:annotation>               <xsd:restriction base="xsd:string">                 <xsd:maxLength value="10"/>               </xsd:restriction>             </xsd:simpleType>           </xsd:element>           <xsd:element name="GroupType" minOccurs="0">             <xsd:simpleType>               <xsd:annotation>                 <xsd:documentation>type of group: 1=outer package, 2=bundle, 3=salvage package</xsd:documentation>                 <xsd:documentation xml:lang="DE">Art der Gruppe: 1=Umverpackung, 2=Zusammenpackung, 3=Bergungsverpackung</xsd:documentation>               </xsd:annotation>               <xsd:restriction base="xsd:string">                 <xsd:length value="1"/>               </xsd:restriction>             </xsd:simpleType>           </xsd:element>           <xsd:element name="GroupDescription" minOccurs="0">             <xsd:simpleType>               <xsd:restriction base="xsd:string">                 <xsd:maxLength value="70"/>               </xsd:restriction>             </xsd:simpleType>           </xsd:element>         </xsd:sequence>       </xsd:complexType>     </xsd:element>     <xsd:element name="LegalNorm" minOccurs="0">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation>identification of the dangerous goods legal norm used for this declaration</xsd:documentation>           <xsd:documentation>e.g. IMDG, RID</xsd:documentation>           <xsd:documentation xml:lang="DE">Kennzeichnung, nach welcher Vorschrift die Gefahrgut-Anmeldung erfolgt</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="4"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="RegulationsAmendment" minOccurs="0">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation xml:lang="DE">Stand/Amendment z.B.  _RID 2009_</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="10"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="TransportCertificate" minOccurs="0" maxOccurs="3">       <xsd:annotation>         <xsd:documentation xml:lang="DE">Beförderungsgenehmigungen, Zulassungszeugnisse</xsd:documentation>       </xsd:annotation>       <xsd:complexType>         <xsd:sequence>           <xsd:element name="CertificateType" minOccurs="0">             <xsd:simpleType>               <xsd:annotation>                 <xsd:documentation xml:lang="DE">Typ der Bescheinigung</xsd:documentation>               </xsd:annotation>               <xsd:restriction base="xsd:string">                 <xsd:maxLength value="10"/>               </xsd:restriction>             </xsd:simpleType>           </xsd:element>           <xsd:element name="CertificateNumber" minOccurs="0">             <xsd:simpleType>               <xsd:annotation>                 <xsd:documentation xml:lang="DE">Nummer/Kennzeichen der Bescheinigung</xsd:documentation>               </xsd:annotation>               <xsd:restriction base="xsd:string">                 <xsd:maxLength value="100"/>               </xsd:restriction>             </xsd:simpleType>           </xsd:element>           <xsd:element name="AdditionalRemarks" minOccurs="0">             <xsd:simpleType>               <xsd:restriction base="xsd:string">                 <xsd:maxLength value="210"/>               </xsd:restriction>             </xsd:simpleType>           </xsd:element>         </xsd:sequence>       </xsd:complexType>     </xsd:element>     <xsd:element name="Class" minOccurs="0">       <xsd:simpleType>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="4"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="UNNumber" minOccurs="0">       <xsd:simpleType>         <xsd:restriction base="xsd:string">           <xsd:length value="4"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="PackingGroup" minOccurs="0">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation>values I, II or III - corresponding to the dangerous goods class</xsd:documentation>           <xsd:documentation xml:lang="DE">I, II oder III - entsprechend der Gefahrklasse</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:string">           <xsd:minLength value="1"/>           <xsd:maxLength value="3"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="ProperShippingName" minOccurs="0">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation>proper shipping name of the dangerous good</xsd:documentation>           <xsd:documentation xml:lang="DE">offizielle Bezeichnung des Gefahrstoffs</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="140"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="TechnicalNameSupplement" minOccurs="0">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation>Recognized chemical or biological name(s) for generic or "not otherwise specified" (N.O.S.) proper shipping names</xsd:documentation>           <xsd:documentation>chemical or technical group name of the dangerous good</xsd:documentation>           <xsd:documentation xml:lang="DE">üblicher chemische oder biologische Name(n) für allgemeine oder "nicht anderweitig genannt" (N.A.G.) offizielle Namen</xsd:documentation>           <xsd:documentation xml:lang="DE">chemischer oder technischer Gruppenname des Gefahrstoffs (Gefahrenauslöser)</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="210"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="GoodsLabel" minOccurs="0" maxOccurs="4">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation>dangerous good label according to GEGIS code list</xsd:documentation>           <xsd:documentation xml:lang="DE">Gefahrzettel lt. GEGIS-Codeverzeichnis</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="4"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="ShuntingLabel" minOccurs="0">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation>Placard-No. 13 or 15</xsd:documentation>           <xsd:documentation xml:lang="DE">Rangierzettel 13 oder 15</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="2"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="MPLabel" minOccurs="0">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation>Marine pollutant mark; values " " or "MP" ("MP" can be stated more precisely by "P" or "PP")</xsd:documentation>           <xsd:documentation xml:lang="DE">Kennzeichnung wassergefährdender Stoffe; Werte: " " oder "MP" ("MP" kann auch genauer durch "P" oder "PP" bezeichnet werden)</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:string">           <xsd:minLength value="1"/>           <xsd:maxLength value="2"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="ClassificationCode" minOccurs="0">       <xsd:simpleType>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="7"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="HazardID" minOccurs="0">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation>Hazard Identification: number shown on the orange-coloured plate</xsd:documentation>           <xsd:documentation xml:lang="DE">Nummer zur Kennzeichnung der Gefahr (Kemler)</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="4"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="EmSNumber" type="EmSDef" minOccurs="0">       <xsd:annotation>         <xsd:documentation>Emergency schedule number</xsd:documentation>         <xsd:documentation xml:lang="DE">EmS-Nummer</xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:element name="LimitedQuantityIndicator" type="ChoiceDef" minOccurs="0">       <xsd:annotation>         <xsd:documentation>Indicator for dangerous goods packed in limited quantities (currently not used in HABIS Classic)</xsd:documentation>         <xsd:documentation xml:lang="DE">Kennzeichnung für Gefahrgut in begrenzter Menge (z.Zt. nicht benutzt in HABIS Classic)</xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:element name="ExceptedQuantityIndicator" type="ChoiceDef" minOccurs="0">       <xsd:annotation>         <xsd:documentation xml:lang="DE">Kennzeichnung für freigestellte Mengen</xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:element name="WasteIndicator" type="ChoiceDef" minOccurs="0">       <xsd:annotation>         <xsd:documentation>Indicator for transport of dangerous goods as waste (currently not used in HABIS Classic)</xsd:documentation>         <xsd:documentation xml:lang="DE">Abfall-Kennzeichen (z.Zt. nicht benutzt in HABIS Classic)</xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:element name="SalvageIndicator" type="ChoiceDef" minOccurs="0">       <xsd:annotation>         <xsd:documentation>Indicator for use of salvage package (currently not used in HABIS Classic)</xsd:documentation>         <xsd:documentation xml:lang="DE">Kennzeichen für Bergungsverpackung (z.Zt. nicht benutzt in HABIS Classic)</xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:element name="EmptyUncleanedIndicator" type="ChoiceDef" minOccurs="0">       <xsd:annotation>         <xsd:documentation>Indicator for empty and not cleaned receptables</xsd:documentation>         <xsd:documentation xml:lang="DE">Indikator für leere, ungereinigte Tanks</xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:element name="Packages" type="PackingDef" minOccurs="0"/>     <xsd:element name="DangerWeight" type="DangerWeightDef" minOccurs="0"/>     <xsd:element name="FlashPointValue" type="TemperatureValue" minOccurs="0"/>     <xsd:element name="Radioactive" type="CL7Def" minOccurs="0">       <xsd:annotation>         <xsd:documentation>only for class 7</xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:element name="SafetyDate" type="xsd:date" minOccurs="0">       <xsd:annotation>         <xsd:documentation>earliest date the safety valve can be opened - relevant for supercooled liquid gases (class 2), format YYYY-MM-DD </xsd:documentation>         <xsd:documentation xml:lang="DE">frühestes Datum zur Öffnung von Sicherheitsventilen - relevant bei unterkühlten flüssigen Gasen (Klasse 2), Format YYYY-MM-DD </xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:element name="WaterPollutionClass" minOccurs="0">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation>values 1, 2, 3: light to strong water pollutant</xsd:documentation>           <xsd:documentation xml:lang="DE">Wassergefährdungsklasse, 1/2/3: schwach bis stark wassergefährdend</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:string">           <xsd:length value="1"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="MarpolCategory" minOccurs="0">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation>values X, Y, Z according to MARPOL Annex II</xsd:documentation>           <xsd:documentation xml:lang="DE">Verschmtzungskategorie: Werte X, Y, Z lt. MARPOL Annex II</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:string">           <xsd:length value="1"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="Comments" minOccurs="0">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation xml:lang="DE">zusätzliche Kommentare</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="210"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="LastTransported" minOccurs="0">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation>Description of last loaded dangerous good (UN-Number, Proper Shipping Name, Class, SubRisks, PackingGroup; e.g. "UN 1098 ALLYLALCOHOL, 6.1(3), I")</xsd:documentation>           <xsd:documentation xml:lang="DE">Beschreibung des letzten Ladeguts (UN-Nr., offizielle Bezeichnung, Klasse, Nebenrisiken, Verpackungsgruppe; z.B. "UN 1098 ALLYLALCOHOL, 6.1(3), I")</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="210"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="Endorsement" minOccurs="0">       <xsd:annotation>         <xsd:documentation>Additional information required in accordance with special provisions, certain classes, special transport conditions, ... (e.g. "Carriage in accordance with 2.2.52.1.9")</xsd:documentation>         <xsd:documentation xml:lang="DE">Zusatzangaben, besondere Bestimmungen etc.  (z.B. "Transport in Übereinstimmung mit 2.2.52.1.9")</xsd:documentation>       </xsd:annotation>       <xsd:simpleType>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="210"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>   </xsd:sequence> </xsd:complexType>

element DangerousGoodsDef/SequenceNumber

diagram
type	restriction of xsd:positiveInteger
properties	isRef  0 content  simple
facets	maxInclusive  999
source	<xsd:element name="SequenceNumber">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation>used to unambigously identify the DG information within a unit in the communication</xsd:documentation>       <xsd:documentation xml:lang="DE">zur eindeutigen Identifikation der Gefahrgut-Angaben für eine Ladeeinheit</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:positiveInteger">       <xsd:maxInclusive value="999"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

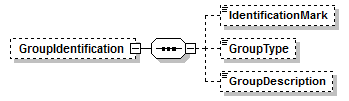

element DangerousGoodsDef/GroupIdentification

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	IdentificationMark GroupType GroupDescription
source	<xsd:element name="GroupIdentification" minOccurs="0">   <xsd:complexType>     <xsd:sequence>       <xsd:element name="IdentificationMark" minOccurs="0">         <xsd:simpleType>           <xsd:annotation>             <xsd:documentation>identifier of the group</xsd:documentation>             <xsd:documentation xml:lang="DE">Gruppen-ID</xsd:documentation>           </xsd:annotation>           <xsd:restriction base="xsd:string">             <xsd:maxLength value="10"/>           </xsd:restriction>         </xsd:simpleType>       </xsd:element>       <xsd:element name="GroupType" minOccurs="0">         <xsd:simpleType>           <xsd:annotation>             <xsd:documentation>type of group: 1=outer package, 2=bundle, 3=salvage package</xsd:documentation>             <xsd:documentation xml:lang="DE">Art der Gruppe: 1=Umverpackung, 2=Zusammenpackung, 3=Bergungsverpackung</xsd:documentation>           </xsd:annotation>           <xsd:restriction base="xsd:string">             <xsd:length value="1"/>           </xsd:restriction>         </xsd:simpleType>       </xsd:element>       <xsd:element name="GroupDescription" minOccurs="0">         <xsd:simpleType>           <xsd:restriction base="xsd:string">             <xsd:maxLength value="70"/>           </xsd:restriction>         </xsd:simpleType>       </xsd:element>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element DangerousGoodsDef/GroupIdentification/IdentificationMark

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  10
source	<xsd:element name="IdentificationMark" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation>identifier of the group</xsd:documentation>       <xsd:documentation xml:lang="DE">Gruppen-ID</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="10"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element DangerousGoodsDef/GroupIdentification/GroupType

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	length  1
source	<xsd:element name="GroupType" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation>type of group: 1=outer package, 2=bundle, 3=salvage package</xsd:documentation>       <xsd:documentation xml:lang="DE">Art der Gruppe: 1=Umverpackung, 2=Zusammenpackung, 3=Bergungsverpackung</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:length value="1"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element DangerousGoodsDef/GroupIdentification/GroupDescription

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  70
source	<xsd:element name="GroupDescription" minOccurs="0">   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="70"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element DangerousGoodsDef/LegalNorm

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  4
source	<xsd:element name="LegalNorm" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation>identification of the dangerous goods legal norm used for this declaration</xsd:documentation>       <xsd:documentation>e.g. IMDG, RID</xsd:documentation>       <xsd:documentation xml:lang="DE">Kennzeichnung, nach welcher Vorschrift die Gefahrgut-Anmeldung erfolgt</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="4"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element DangerousGoodsDef/RegulationsAmendment

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  10
source	<xsd:element name="RegulationsAmendment" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation xml:lang="DE">Stand/Amendment z.B.  _RID 2009_</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="10"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

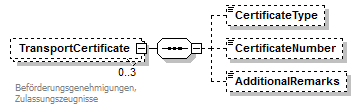

element DangerousGoodsDef/TransportCertificate

diagram
properties	isRef  0 minOcc  0 maxOcc  3 content  complex
children	CertificateType CertificateNumber AdditionalRemarks
annotation	documentation Beförderungsgenehmigungen, Zulassungszeugnisse
source	<xsd:element name="TransportCertificate" minOccurs="0" maxOccurs="3">   <xsd:annotation>     <xsd:documentation xml:lang="DE">Beförderungsgenehmigungen, Zulassungszeugnisse</xsd:documentation>   </xsd:annotation>   <xsd:complexType>     <xsd:sequence>       <xsd:element name="CertificateType" minOccurs="0">         <xsd:simpleType>           <xsd:annotation>             <xsd:documentation xml:lang="DE">Typ der Bescheinigung</xsd:documentation>           </xsd:annotation>           <xsd:restriction base="xsd:string">             <xsd:maxLength value="10"/>           </xsd:restriction>         </xsd:simpleType>       </xsd:element>       <xsd:element name="CertificateNumber" minOccurs="0">         <xsd:simpleType>           <xsd:annotation>             <xsd:documentation xml:lang="DE">Nummer/Kennzeichen der Bescheinigung</xsd:documentation>           </xsd:annotation>           <xsd:restriction base="xsd:string">             <xsd:maxLength value="100"/>           </xsd:restriction>         </xsd:simpleType>       </xsd:element>       <xsd:element name="AdditionalRemarks" minOccurs="0">         <xsd:simpleType>           <xsd:restriction base="xsd:string">             <xsd:maxLength value="210"/>           </xsd:restriction>         </xsd:simpleType>       </xsd:element>     </xsd:sequence>   </xsd:complexType> </xsd:element>

element DangerousGoodsDef/TransportCertificate/CertificateType

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  10
source	<xsd:element name="CertificateType" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation xml:lang="DE">Typ der Bescheinigung</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="10"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element DangerousGoodsDef/TransportCertificate/CertificateNumber

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  100
source	<xsd:element name="CertificateNumber" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation xml:lang="DE">Nummer/Kennzeichen der Bescheinigung</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="100"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element DangerousGoodsDef/TransportCertificate/AdditionalRemarks

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  210
source	<xsd:element name="AdditionalRemarks" minOccurs="0">   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="210"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element DangerousGoodsDef/Class

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  4
source	<xsd:element name="Class" minOccurs="0">   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="4"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element DangerousGoodsDef/UNNumber

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	length  4
source	<xsd:element name="UNNumber" minOccurs="0">   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:length value="4"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element DangerousGoodsDef/PackingGroup

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  3
source	<xsd:element name="PackingGroup" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation>values I, II or III - corresponding to the dangerous goods class</xsd:documentation>       <xsd:documentation xml:lang="DE">I, II oder III - entsprechend der Gefahrklasse</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:minLength value="1"/>       <xsd:maxLength value="3"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element DangerousGoodsDef/ProperShippingName

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  140
source	<xsd:element name="ProperShippingName" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation>proper shipping name of the dangerous good</xsd:documentation>       <xsd:documentation xml:lang="DE">offizielle Bezeichnung des Gefahrstoffs</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="140"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element DangerousGoodsDef/TechnicalNameSupplement

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  210
source	<xsd:element name="TechnicalNameSupplement" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation>Recognized chemical or biological name(s) for generic or "not otherwise specified" (N.O.S.) proper shipping names</xsd:documentation>       <xsd:documentation>chemical or technical group name of the dangerous good</xsd:documentation>       <xsd:documentation xml:lang="DE">üblicher chemische oder biologische Name(n) für allgemeine oder "nicht anderweitig genannt" (N.A.G.) offizielle Namen</xsd:documentation>       <xsd:documentation xml:lang="DE">chemischer oder technischer Gruppenname des Gefahrstoffs (Gefahrenauslöser)</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="210"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element DangerousGoodsDef/GoodsLabel

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  4 content  simple
facets	maxLength  4
source	<xsd:element name="GoodsLabel" minOccurs="0" maxOccurs="4">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation>dangerous good label according to GEGIS code list</xsd:documentation>       <xsd:documentation xml:lang="DE">Gefahrzettel lt. GEGIS-Codeverzeichnis</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="4"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element DangerousGoodsDef/ShuntingLabel

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  2
source	<xsd:element name="ShuntingLabel" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation>Placard-No. 13 or 15</xsd:documentation>       <xsd:documentation xml:lang="DE">Rangierzettel 13 oder 15</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="2"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element DangerousGoodsDef/MPLabel

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  2
source	<xsd:element name="MPLabel" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation>Marine pollutant mark; values " " or "MP" ("MP" can be stated more precisely by "P" or "PP")</xsd:documentation>       <xsd:documentation xml:lang="DE">Kennzeichnung wassergefährdender Stoffe; Werte: " " oder "MP" ("MP" kann auch genauer durch "P" oder "PP" bezeichnet werden)</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:minLength value="1"/>       <xsd:maxLength value="2"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element DangerousGoodsDef/ClassificationCode

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  7
source	<xsd:element name="ClassificationCode" minOccurs="0">   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="7"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element DangerousGoodsDef/HazardID

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  4
source	<xsd:element name="HazardID" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation>Hazard Identification: number shown on the orange-coloured plate</xsd:documentation>       <xsd:documentation xml:lang="DE">Nummer zur Kennzeichnung der Gefahr (Kemler)</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="4"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

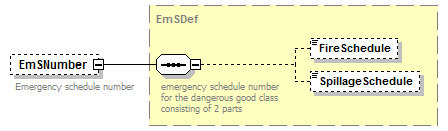

element DangerousGoodsDef/EmSNumber

diagram
type	EmSDef
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	FireSchedule SpillageSchedule
annotation	documentation Emergency schedule number documentation EmS-Nummer
source	<xsd:element name="EmSNumber" type="EmSDef" minOccurs="0">   <xsd:annotation>     <xsd:documentation>Emergency schedule number</xsd:documentation>     <xsd:documentation xml:lang="DE">EmS-Nummer</xsd:documentation>   </xsd:annotation> </xsd:element>

element DangerousGoodsDef/LimitedQuantityIndicator

diagram
type	ChoiceDef
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	enumeration  Y enumeration  N
annotation	documentation Indicator for dangerous goods packed in limited quantities (currently not used in HABIS Classic) documentation Kennzeichnung für Gefahrgut in begrenzter Menge (z.Zt. nicht benutzt in HABIS Classic)
source	<xsd:element name="LimitedQuantityIndicator" type="ChoiceDef" minOccurs="0">   <xsd:annotation>     <xsd:documentation>Indicator for dangerous goods packed in limited quantities (currently not used in HABIS Classic)</xsd:documentation>     <xsd:documentation xml:lang="DE">Kennzeichnung für Gefahrgut in begrenzter Menge (z.Zt. nicht benutzt in HABIS Classic)</xsd:documentation>   </xsd:annotation> </xsd:element>

element DangerousGoodsDef/ExceptedQuantityIndicator

diagram
type	ChoiceDef
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	enumeration  Y enumeration  N
annotation	documentation Kennzeichnung für freigestellte Mengen
source	<xsd:element name="ExceptedQuantityIndicator" type="ChoiceDef" minOccurs="0">   <xsd:annotation>     <xsd:documentation xml:lang="DE">Kennzeichnung für freigestellte Mengen</xsd:documentation>   </xsd:annotation> </xsd:element>

element DangerousGoodsDef/WasteIndicator

diagram
type	ChoiceDef
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	enumeration  Y enumeration  N
annotation	documentation Indicator for transport of dangerous goods as waste (currently not used in HABIS Classic) documentation Abfall-Kennzeichen (z.Zt. nicht benutzt in HABIS Classic)
source	<xsd:element name="WasteIndicator" type="ChoiceDef" minOccurs="0">   <xsd:annotation>     <xsd:documentation>Indicator for transport of dangerous goods as waste (currently not used in HABIS Classic)</xsd:documentation>     <xsd:documentation xml:lang="DE">Abfall-Kennzeichen (z.Zt. nicht benutzt in HABIS Classic)</xsd:documentation>   </xsd:annotation> </xsd:element>

element DangerousGoodsDef/SalvageIndicator

diagram
type	ChoiceDef
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	enumeration  Y enumeration  N
annotation	documentation Indicator for use of salvage package (currently not used in HABIS Classic) documentation Kennzeichen für Bergungsverpackung (z.Zt. nicht benutzt in HABIS Classic)
source	<xsd:element name="SalvageIndicator" type="ChoiceDef" minOccurs="0">   <xsd:annotation>     <xsd:documentation>Indicator for use of salvage package (currently not used in HABIS Classic)</xsd:documentation>     <xsd:documentation xml:lang="DE">Kennzeichen für Bergungsverpackung (z.Zt. nicht benutzt in HABIS Classic)</xsd:documentation>   </xsd:annotation> </xsd:element>

element DangerousGoodsDef/EmptyUncleanedIndicator

diagram
type	ChoiceDef
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	enumeration  Y enumeration  N
annotation	documentation Indicator for empty and not cleaned receptables documentation Indikator für leere, ungereinigte Tanks
source	<xsd:element name="EmptyUncleanedIndicator" type="ChoiceDef" minOccurs="0">   <xsd:annotation>     <xsd:documentation>Indicator for empty and not cleaned receptables</xsd:documentation>     <xsd:documentation xml:lang="DE">Indikator für leere, ungereinigte Tanks</xsd:documentation>   </xsd:annotation> </xsd:element>

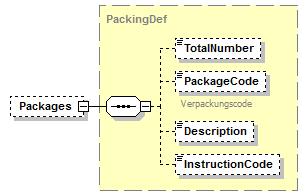

element DangerousGoodsDef/Packages

diagram
type	PackingDef
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	TotalNumber PackageCode Description InstructionCode
source	<xsd:element name="Packages" type="PackingDef" minOccurs="0"/>

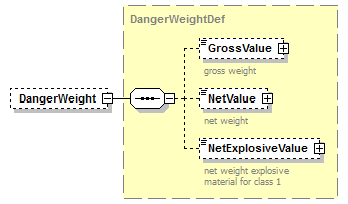

element DangerousGoodsDef/DangerWeight

diagram
type	DangerWeightDef
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	GrossValue NetValue NetExplosiveValue
source	<xsd:element name="DangerWeight" type="DangerWeightDef" minOccurs="0"/>

element DangerousGoodsDef/FlashPointValue

diagram
type	TemperatureValue
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
facets	minInclusive  -999 maxInclusive  999 totalDigits  3 fractionDigits  0
attributes	Name   Type   Use   Default   Fixed   annotation unit TemperatureUnit required
source	<xsd:element name="FlashPointValue" type="TemperatureValue" minOccurs="0"/>

element DangerousGoodsDef/Radioactive

diagram
type	CL7Def
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	Category Radionuclides MaxActivityValue TransportIndex CriticalSafetyIndex PackageType ExclusiveUseIndicator
annotation	documentation only for class 7
source	<xsd:element name="Radioactive" type="CL7Def" minOccurs="0">   <xsd:annotation>     <xsd:documentation>only for class 7</xsd:documentation>   </xsd:annotation> </xsd:element>

element DangerousGoodsDef/SafetyDate

diagram
type	xsd:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation earliest date the safety valve can be opened - relevant for supercooled liquid gases (class 2), format YYYY-MM-DD documentation frühestes Datum zur Öffnung von Sicherheitsventilen - relevant bei unterkühlten flüssigen Gasen (Klasse 2), Format YYYY-MM-DD
source	<xsd:element name="SafetyDate" type="xsd:date" minOccurs="0">   <xsd:annotation>     <xsd:documentation>earliest date the safety valve can be opened - relevant for supercooled liquid gases (class 2), format YYYY-MM-DD </xsd:documentation>     <xsd:documentation xml:lang="DE">frühestes Datum zur Öffnung von Sicherheitsventilen - relevant bei unterkühlten flüssigen Gasen (Klasse 2), Format YYYY-MM-DD </xsd:documentation>   </xsd:annotation> </xsd:element>

element DangerousGoodsDef/WaterPollutionClass

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	length  1
source	<xsd:element name="WaterPollutionClass" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation>values 1, 2, 3: light to strong water pollutant</xsd:documentation>       <xsd:documentation xml:lang="DE">Wassergefährdungsklasse, 1/2/3: schwach bis stark wassergefährdend</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:length value="1"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element DangerousGoodsDef/MarpolCategory

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	length  1
source	<xsd:element name="MarpolCategory" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation>values X, Y, Z according to MARPOL Annex II</xsd:documentation>       <xsd:documentation xml:lang="DE">Verschmtzungskategorie: Werte X, Y, Z lt. MARPOL Annex II</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:length value="1"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element DangerousGoodsDef/Comments

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  210
source	<xsd:element name="Comments" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation xml:lang="DE">zusätzliche Kommentare</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="210"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element DangerousGoodsDef/LastTransported

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  210
source	<xsd:element name="LastTransported" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation>Description of last loaded dangerous good (UN-Number, Proper Shipping Name, Class, SubRisks, PackingGroup; e.g. "UN 1098 ALLYLALCOHOL, 6.1(3), I")</xsd:documentation>       <xsd:documentation xml:lang="DE">Beschreibung des letzten Ladeguts (UN-Nr., offizielle Bezeichnung, Klasse, Nebenrisiken, Verpackungsgruppe; z.B. "UN 1098 ALLYLALCOHOL, 6.1(3), I")</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="210"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element DangerousGoodsDef/Endorsement

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  210
annotation	documentation Additional information required in accordance with special provisions, certain classes, special transport conditions, ... (e.g. "Carriage in accordance with 2.2.52.1.9") documentation Zusatzangaben, besondere Bestimmungen etc.  (z.B. "Transport in Übereinstimmung mit 2.2.52.1.9")
source	<xsd:element name="Endorsement" minOccurs="0">   <xsd:annotation>     <xsd:documentation>Additional information required in accordance with special provisions, certain classes, special transport conditions, ... (e.g. "Carriage in accordance with 2.2.52.1.9")</xsd:documentation>     <xsd:documentation xml:lang="DE">Zusatzangaben, besondere Bestimmungen etc.  (z.B. "Transport in Übereinstimmung mit 2.2.52.1.9")</xsd:documentation>   </xsd:annotation>   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="210"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

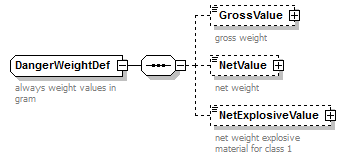

complexType DangerWeightDef

diagram
children	GrossValue NetValue NetExplosiveValue
used by	element  DangerousGoodsDef/DangerWeight
annotation	documentation always weight values in gram documentation alle Gewichtsangaben für Gefahrgut in Gramm
source	<xsd:complexType name="DangerWeightDef">   <xsd:annotation>     <xsd:documentation>always weight values in gram</xsd:documentation>     <xsd:documentation xml:lang="DE">alle Gewichtsangaben für Gefahrgut in Gramm</xsd:documentation>   </xsd:annotation>   <xsd:sequence>     <xsd:element name="GrossValue" type="WeightDef" minOccurs="0">       <xsd:annotation>         <xsd:documentation>gross weight</xsd:documentation>         <xsd:documentation xml:lang="DE">Bruttogewicht</xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:element name="NetValue" type="WeightDef" minOccurs="0">       <xsd:annotation>         <xsd:documentation>net weight</xsd:documentation>         <xsd:documentation xml:lang="DE">Nettogewicht</xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:element name="NetExplosiveValue" type="WeightDef" minOccurs="0">       <xsd:annotation>         <xsd:documentation>net weight explosive material for class 1</xsd:documentation>         <xsd:documentation xml:lang="DE">Explosivstoff-Masse (Klasse 1)</xsd:documentation>       </xsd:annotation>     </xsd:element>   </xsd:sequence> </xsd:complexType>

element DangerWeightDef/GrossValue

diagram
type	WeightDef
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation unit WeightUnit required
annotation	documentation gross weight documentation Bruttogewicht
source	<xsd:element name="GrossValue" type="WeightDef" minOccurs="0">   <xsd:annotation>     <xsd:documentation>gross weight</xsd:documentation>     <xsd:documentation xml:lang="DE">Bruttogewicht</xsd:documentation>   </xsd:annotation> </xsd:element>

element DangerWeightDef/NetValue

diagram
type	WeightDef
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation unit WeightUnit required
annotation	documentation net weight documentation Nettogewicht
source	<xsd:element name="NetValue" type="WeightDef" minOccurs="0">   <xsd:annotation>     <xsd:documentation>net weight</xsd:documentation>     <xsd:documentation xml:lang="DE">Nettogewicht</xsd:documentation>   </xsd:annotation> </xsd:element>

element DangerWeightDef/NetExplosiveValue

diagram
type	WeightDef
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation unit WeightUnit required
annotation	documentation net weight explosive material for class 1 documentation Explosivstoff-Masse (Klasse 1)
source	<xsd:element name="NetExplosiveValue" type="WeightDef" minOccurs="0">   <xsd:annotation>     <xsd:documentation>net weight explosive material for class 1</xsd:documentation>     <xsd:documentation xml:lang="DE">Explosivstoff-Masse (Klasse 1)</xsd:documentation>   </xsd:annotation> </xsd:element>

complexType EmSDef

diagram
children	FireSchedule SpillageSchedule
used by	element  DangerousGoodsDef/EmSNumber
source	<xsd:complexType name="EmSDef">   <xsd:sequence>     <xsd:annotation>       <xsd:documentation>emergency schedule number for the dangerous good class consisting of 2 parts</xsd:documentation>       <xsd:documentation xml:lang="DE">EmS-Nummer besteht aus zwei Teilen</xsd:documentation>     </xsd:annotation>     <xsd:element name="FireSchedule" minOccurs="0">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation xml:lang="DE">Vorschriften bei Feuer</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="3"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="SpillageSchedule" minOccurs="0">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation xml:lang="DE">Vorschriften bei Verschüttung</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="3"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>   </xsd:sequence> </xsd:complexType>

element EmSDef/FireSchedule

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  3
source	<xsd:element name="FireSchedule" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation xml:lang="DE">Vorschriften bei Feuer</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="3"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element EmSDef/SpillageSchedule

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  3
source	<xsd:element name="SpillageSchedule" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation xml:lang="DE">Vorschriften bei Verschüttung</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="3"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

complexType InformationContactDef

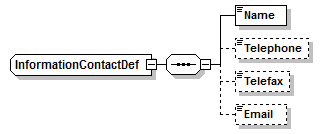

diagram
children	Name Telephone Telefax Email
used by	element  PartyDataDef/InformationContact
source	<xsd:complexType name="InformationContactDef">   <xsd:sequence>     <xsd:element name="Name">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation>last and first name of the person for the contact</xsd:documentation>           <xsd:documentation xml:lang="DE">Nachname und Vorname der Kontaktperson</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="20"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="Telephone" minOccurs="0">       <xsd:simpleType>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="15"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="Telefax" minOccurs="0">       <xsd:simpleType>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="15"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="Email" minOccurs="0">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation>currently not used in HABIS</xsd:documentation>           <xsd:documentation xml:lang="DE">z.Zt. in HABIS nicht benutzt</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="70"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>   </xsd:sequence> </xsd:complexType>

element InformationContactDef/Name

diagram
type	restriction of xsd:string
properties	isRef  0 content  simple
facets	maxLength  20
source	<xsd:element name="Name">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation>last and first name of the person for the contact</xsd:documentation>       <xsd:documentation xml:lang="DE">Nachname und Vorname der Kontaktperson</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="20"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element InformationContactDef/Telephone

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  15
source	<xsd:element name="Telephone" minOccurs="0">   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="15"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element InformationContactDef/Telefax

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  15
source	<xsd:element name="Telefax" minOccurs="0">   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="15"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element InformationContactDef/Email

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  70
source	<xsd:element name="Email" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation>currently not used in HABIS</xsd:documentation>       <xsd:documentation xml:lang="DE">z.Zt. in HABIS nicht benutzt</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="70"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

complexType LengthDef

diagram
type	extension of xsd:nonNegativeInteger
properties	base  xsd:nonNegativeInteger
attributes	Name   Type   Use   Default   Fixed   annotation unit LengthUnit required
source	<xsd:complexType name="LengthDef">   <xsd:simpleContent>     <xsd:extension base="xsd:nonNegativeInteger">       <xsd:attribute name="unit" type="LengthUnit" use="required"/>     </xsd:extension>   </xsd:simpleContent> </xsd:complexType>

attribute LengthDef/@unit

type	LengthUnit
properties	isRef  0 use  required
facets	enumeration  m enumeration  dm enumeration  cm enumeration  mm
source	<xsd:attribute name="unit" type="LengthUnit" use="required"/>

complexType LocationDef

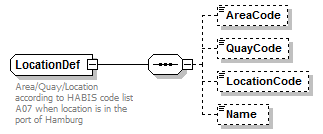

diagram
children	AreaCode QuayCode LocationCode Name
used by	element  TrackDiagramDef/TrackLocation
annotation	documentation Area/Quay/Location according to HABIS code list A07 when location is in the port of Hamburg documentation Ortsangabe, bei Ladestellen des Hamburger Hafens bestehend aus Bahnhofsbereich/Kaibetrieb/Ladestelle lt. HABIS-Schlüsselverzeichnis A07
source	<xsd:complexType name="LocationDef">   <xsd:annotation>     <xsd:documentation>Area/Quay/Location according to HABIS code list A07 when location is in the port of Hamburg</xsd:documentation>     <xsd:documentation xml:lang="DE">Ortsangabe, bei Ladestellen des Hamburger Hafens bestehend aus Bahnhofsbereich/Kaibetrieb/Ladestelle lt. HABIS-Schlüsselverzeichnis A07</xsd:documentation>   </xsd:annotation>   <xsd:sequence>     <xsd:element name="AreaCode" minOccurs="0">       <xsd:simpleType>         <xsd:restriction base="xsd:string">           <xsd:minLength value="1"/>           <xsd:maxLength value="4"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="QuayCode" minOccurs="0">       <xsd:simpleType>         <xsd:restriction base="xsd:string">           <xsd:minLength value="1"/>           <xsd:maxLength value="4"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="LocationCode" minOccurs="0">       <xsd:simpleType>         <xsd:restriction base="xsd:string">           <xsd:minLength value="1"/>           <xsd:maxLength value="4"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="Name" minOccurs="0">       <xsd:simpleType>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="40"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>   </xsd:sequence> </xsd:complexType>

element LocationDef/AreaCode

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  4
source	<xsd:element name="AreaCode" minOccurs="0">   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:minLength value="1"/>       <xsd:maxLength value="4"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element LocationDef/QuayCode

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  4
source	<xsd:element name="QuayCode" minOccurs="0">   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:minLength value="1"/>       <xsd:maxLength value="4"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element LocationDef/LocationCode

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  4
source	<xsd:element name="LocationCode" minOccurs="0">   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:minLength value="1"/>       <xsd:maxLength value="4"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element LocationDef/Name

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  40
source	<xsd:element name="Name" minOccurs="0">   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="40"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

complexType PackingDef

diagram
children	TotalNumber PackageCode Description InstructionCode
used by	element  DangerousGoodsDef/Packages
source	<xsd:complexType name="PackingDef">   <xsd:sequence>     <xsd:element name="TotalNumber" minOccurs="0">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation>number of package units (max. in HABIS: 999 999)</xsd:documentation>           <xsd:documentation xml:lang="DE">Anzahl Packstücke (max. in HABIS: 999 999)</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:positiveInteger"/>       </xsd:simpleType>     </xsd:element>     <xsd:element name="PackageCode" minOccurs="0">       <xsd:annotation>         <xsd:documentation xml:lang="DE">Verpackungscode</xsd:documentation>       </xsd:annotation>       <xsd:simpleType>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="6"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="Description" minOccurs="0">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation>type of packages in plain text</xsd:documentation>           <xsd:documentation xml:lang="DE">Art der Verpackung als Text</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="70"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="InstructionCode" minOccurs="0">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation>instruction for packaging, coded</xsd:documentation>           <xsd:documentation xml:lang="DE">Verpackungsanweisung</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="5"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>   </xsd:sequence> </xsd:complexType>

element PackingDef/TotalNumber

diagram
type	restriction of xsd:positiveInteger
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="TotalNumber" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation>number of package units (max. in HABIS: 999 999)</xsd:documentation>       <xsd:documentation xml:lang="DE">Anzahl Packstücke (max. in HABIS: 999 999)</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:positiveInteger"/>   </xsd:simpleType> </xsd:element>

element PackingDef/PackageCode

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  6
annotation	documentation Verpackungscode
source	<xsd:element name="PackageCode" minOccurs="0">   <xsd:annotation>     <xsd:documentation xml:lang="DE">Verpackungscode</xsd:documentation>   </xsd:annotation>   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="6"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element PackingDef/Description

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  70
source	<xsd:element name="Description" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation>type of packages in plain text</xsd:documentation>       <xsd:documentation xml:lang="DE">Art der Verpackung als Text</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="70"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element PackingDef/InstructionCode

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  5
source	<xsd:element name="InstructionCode" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation>instruction for packaging, coded</xsd:documentation>       <xsd:documentation xml:lang="DE">Verpackungsanweisung</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="5"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

complexType PartyDataDef

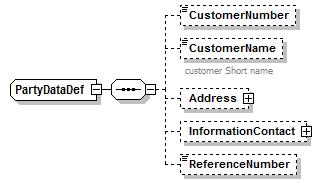

diagram
children	CustomerNumber CustomerName Address InformationContact ReferenceNumber
source	<xsd:complexType name="PartyDataDef">   <xsd:sequence>     <xsd:element name="CustomerNumber" minOccurs="0">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation>this number / code is used by the contractor to indentify the customer</xsd:documentation>           <xsd:documentation xml:lang="DE">Kundennummer des Beteiligten, zur Identifizierung durch das EVU</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="12"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="CustomerName" type="AddressFieldDef" minOccurs="0">       <xsd:annotation>         <xsd:documentation>customer Short name</xsd:documentation>         <xsd:documentation xml:lang="DE">Kurzname</xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:element name="Address" type="AddressDataDef" minOccurs="0"/>     <xsd:element name="InformationContact" type="InformationContactDef" minOccurs="0"/>     <xsd:element name="ReferenceNumber" minOccurs="0">       <xsd:simpleType>         <xsd:annotation>           <xsd:documentation xml:lang="DE">z.B. Verkehrsführer-Referenz</xsd:documentation>         </xsd:annotation>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="35"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>   </xsd:sequence> </xsd:complexType>

element PartyDataDef/CustomerNumber

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  12
source	<xsd:element name="CustomerNumber" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation>this number / code is used by the contractor to indentify the customer</xsd:documentation>       <xsd:documentation xml:lang="DE">Kundennummer des Beteiligten, zur Identifizierung durch das EVU</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="12"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element PartyDataDef/CustomerName

diagram
type	AddressFieldDef
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  30
annotation	documentation customer Short name documentation Kurzname
source	<xsd:element name="CustomerName" type="AddressFieldDef" minOccurs="0">   <xsd:annotation>     <xsd:documentation>customer Short name</xsd:documentation>     <xsd:documentation xml:lang="DE">Kurzname</xsd:documentation>   </xsd:annotation> </xsd:element>

element PartyDataDef/Address

diagram
type	AddressDataDef
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	Name StreetAndNumber Place PostCode Country
source	<xsd:element name="Address" type="AddressDataDef" minOccurs="0"/>

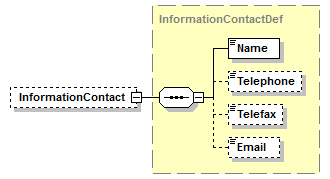

element PartyDataDef/InformationContact

diagram
type	InformationContactDef
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	Name Telephone Telefax Email
source	<xsd:element name="InformationContact" type="InformationContactDef" minOccurs="0"/>

element PartyDataDef/ReferenceNumber

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  35
source	<xsd:element name="ReferenceNumber" minOccurs="0">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation xml:lang="DE">z.B. Verkehrsführer-Referenz</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="35"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

complexType RailStationDef

diagram
children	CountryCode Code Name
source	<xsd:complexType name="RailStationDef">   <xsd:sequence>     <xsd:element name="CountryCode" type="CountryCodeDef" minOccurs="0"/>     <xsd:element name="Code" type="StationCodeDef"/>     <xsd:element name="Name" minOccurs="0">       <xsd:simpleType>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="32"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>   </xsd:sequence> </xsd:complexType>

element RailStationDef/CountryCode

diagram
type	CountryCodeDef
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	pattern  [A-Z][A-Z]
source	<xsd:element name="CountryCode" type="CountryCodeDef" minOccurs="0"/>

element RailStationDef/Code

diagram
type	StationCodeDef
properties	isRef  0 content  simple
facets	pattern  \d{8}
source	<xsd:element name="Code" type="StationCodeDef"/>

element RailStationDef/Name

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  32
source	<xsd:element name="Name" minOccurs="0">   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="32"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

complexType ReferenceDef

diagram
type	extension of ReferenceText
properties	base  ReferenceText
used by	element  BusinessDocumentDef/Reference
facets	minLength  1 maxLength  35
attributes	Name   Type   Use   Default   Fixed   annotation type derived by: xsd:string
source	<xsd:complexType name="ReferenceDef">   <xsd:simpleContent>     <xsd:extension base="ReferenceText">       <xsd:attribute name="type">         <xsd:simpleType>           <xsd:annotation>             <xsd:documentation>Type of reference, e.g. the transport order number or the message reference number.</xsd:documentation>             <xsd:documentation>ORIGMS = reference of the original message (only used in the Response message)</xsd:documentation>             <xsd:documentation>TONR = HABIS transport order number</xsd:documentation>             <xsd:documentation>CTOREF = customer's transport order reference</xsd:documentation>             <xsd:documentation>UNITNR = number of the shipping unit in the transport order</xsd:documentation>             <xsd:documentation>DGNR = number of the dangerous goods information on a unit in the transport order</xsd:documentation>             <xsd:documentation>SEALNR = number of the seal on a unit in the transport order</xsd:documentation>             <xsd:documentation>WSEQNR = HABIS wagon sequence number</xsd:documentation>             <xsd:documentation>WAGNR = number of the wagon in a wagon sequence</xsd:documentation>             <xsd:documentation>TRACKD = arbitrary unique key value for track diagrams</xsd:documentation>             <xsd:documentation>LOADPL = arbitrary unique key value for loading plans</xsd:documentation>             <xsd:documentation>ORDCO = code of the rail transport company owning the transport order</xsd:documentation>             <xsd:documentation xml:lang="DE">Art der Referenz, z.B. Auftragsnummer oder Nachrichten-Referenz</xsd:documentation>             <xsd:documentation xml:lang="DE">ORIGMS = Referenz der Original-Nachricht (nur in der Quittung benutz)</xsd:documentation>             <xsd:documentation xml:lang="DE">TONR = HABIS TA-Nummer</xsd:documentation>             <xsd:documentation xml:lang="DE">CTOREF = Auftragsnummer des EVU</xsd:documentation>             <xsd:documentation xml:lang="DE">UNITNR = eindeutige Nummer der Ladeeinheit im Auftrag</xsd:documentation>             <xsd:documentation xml:lang="DE">DGNR = eindeutige Nummer der Gefahrgut-Angabe innerhalb der Ladeeinheit</xsd:documentation>             <xsd:documentation xml:lang="DE">SEALNR = eindeutige Nummer der Siegel-Angabe innerhalb der Ladeeinheit</xsd:documentation>             <xsd:documentation xml:lang="DE">WSEQNR = HABIS Reihungs-Referenz</xsd:documentation>             <xsd:documentation xml:lang="DE">WAGNR = eindeutige Nummer des Wagens in einer Reihung</xsd:documentation>             <xsd:documentation xml:lang="DE">TRACKD = beliebiger eindeutiger Schlüsselwert für Gleisspiegel</xsd:documentation>             <xsd:documentation xml:lang="DE">LOADPL = beliebiger eindeutiger Schlüsselwert für Verladepläne</xsd:documentation>             <xsd:documentation xml:lang="DE">ORDCO = Teilnehmer-Code des EVU, das die Auftragsnummer vergeben hat</xsd:documentation>           </xsd:annotation>           <xsd:restriction base="xsd:string"/>         </xsd:simpleType>       </xsd:attribute>     </xsd:extension>   </xsd:simpleContent> </xsd:complexType>

attribute ReferenceDef/@type

type	restriction of xsd:string
properties	isRef  0
source	<xsd:attribute name="type">   <xsd:simpleType>     <xsd:annotation>       <xsd:documentation>Type of reference, e.g. the transport order number or the message reference number.</xsd:documentation>       <xsd:documentation>ORIGMS = reference of the original message (only used in the Response message)</xsd:documentation>       <xsd:documentation>TONR = HABIS transport order number</xsd:documentation>       <xsd:documentation>CTOREF = customer's transport order reference</xsd:documentation>       <xsd:documentation>UNITNR = number of the shipping unit in the transport order</xsd:documentation>       <xsd:documentation>DGNR = number of the dangerous goods information on a unit in the transport order</xsd:documentation>       <xsd:documentation>SEALNR = number of the seal on a unit in the transport order</xsd:documentation>       <xsd:documentation>WSEQNR = HABIS wagon sequence number</xsd:documentation>       <xsd:documentation>WAGNR = number of the wagon in a wagon sequence</xsd:documentation>       <xsd:documentation>TRACKD = arbitrary unique key value for track diagrams</xsd:documentation>       <xsd:documentation>LOADPL = arbitrary unique key value for loading plans</xsd:documentation>       <xsd:documentation>ORDCO = code of the rail transport company owning the transport order</xsd:documentation>       <xsd:documentation xml:lang="DE">Art der Referenz, z.B. Auftragsnummer oder Nachrichten-Referenz</xsd:documentation>       <xsd:documentation xml:lang="DE">ORIGMS = Referenz der Original-Nachricht (nur in der Quittung benutz)</xsd:documentation>       <xsd:documentation xml:lang="DE">TONR = HABIS TA-Nummer</xsd:documentation>       <xsd:documentation xml:lang="DE">CTOREF = Auftragsnummer des EVU</xsd:documentation>       <xsd:documentation xml:lang="DE">UNITNR = eindeutige Nummer der Ladeeinheit im Auftrag</xsd:documentation>       <xsd:documentation xml:lang="DE">DGNR = eindeutige Nummer der Gefahrgut-Angabe innerhalb der Ladeeinheit</xsd:documentation>       <xsd:documentation xml:lang="DE">SEALNR = eindeutige Nummer der Siegel-Angabe innerhalb der Ladeeinheit</xsd:documentation>       <xsd:documentation xml:lang="DE">WSEQNR = HABIS Reihungs-Referenz</xsd:documentation>       <xsd:documentation xml:lang="DE">WAGNR = eindeutige Nummer des Wagens in einer Reihung</xsd:documentation>       <xsd:documentation xml:lang="DE">TRACKD = beliebiger eindeutiger Schlüsselwert für Gleisspiegel</xsd:documentation>       <xsd:documentation xml:lang="DE">LOADPL = beliebiger eindeutiger Schlüsselwert für Verladepläne</xsd:documentation>       <xsd:documentation xml:lang="DE">ORDCO = Teilnehmer-Code des EVU, das die Auftragsnummer vergeben hat</xsd:documentation>     </xsd:annotation>     <xsd:restriction base="xsd:string"/>   </xsd:simpleType> </xsd:attribute>

complexType StationAreaDef

diagram
children	CountryCode Code Name
source	<xsd:complexType name="StationAreaDef">   <xsd:sequence>     <xsd:element name="CountryCode" type="CountryCodeDef" minOccurs="0"/>     <xsd:element name="Code" type="StationCodeDef" minOccurs="0"/>     <xsd:element name="Name" minOccurs="0">       <xsd:simpleType>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="35"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>   </xsd:sequence> </xsd:complexType>

element StationAreaDef/CountryCode

diagram
type	CountryCodeDef
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	pattern  [A-Z][A-Z]
source	<xsd:element name="CountryCode" type="CountryCodeDef" minOccurs="0"/>

element StationAreaDef/Code

diagram
type	StationCodeDef
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	pattern  \d{8}
source	<xsd:element name="Code" type="StationCodeDef" minOccurs="0"/>

element StationAreaDef/Name

diagram
type	restriction of xsd:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  35
source	<xsd:element name="Name" minOccurs="0">   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="35"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

complexType TemperatureValue

diagram
type	extension of Decimal3
properties	base  Decimal3
used by	element  DangerousGoodsDef/FlashPointValue
facets	minInclusive  -999 maxInclusive  999 totalDigits  3 fractionDigits  0
attributes	Name   Type   Use   Default   Fixed   annotation unit TemperatureUnit required
source	<xsd:complexType name="TemperatureValue">   <xsd:simpleContent>     <xsd:extension base="Decimal3">       <xsd:attribute name="unit" type="TemperatureUnit" use="required"/>     </xsd:extension>   </xsd:simpleContent> </xsd:complexType>

attribute TemperatureValue/@unit

type	TemperatureUnit
properties	isRef  0 use  required
facets	enumeration  Celsius
source	<xsd:attribute name="unit" type="TemperatureUnit" use="required"/>

complexType TrainDef

diagram
children	Number Date Time
source	<xsd:complexType name="TrainDef">   <xsd:sequence>     <xsd:element name="Number">       <xsd:simpleType>         <xsd:restriction base="xsd:string">           <xsd:maxLength value="6"/>           <xsd:minLength value="1"/>         </xsd:restriction>       </xsd:simpleType>     </xsd:element>     <xsd:element name="Date" type="xsd:date"/>     <xsd:element name="Time" type="xsd:time" minOccurs="0"/>   </xsd:sequence> </xsd:complexType>

element TrainDef/Number

diagram
type	restriction of xsd:string
properties	isRef  0 content  simple
facets	minLength  1 maxLength  6
source	<xsd:element name="Number">   <xsd:simpleType>     <xsd:restriction base="xsd:string">       <xsd:maxLength value="6"/>       <xsd:minLength value="1"/>     </xsd:restriction>   </xsd:simpleType> </xsd:element>

element TrainDef/Date

diagram
type	xsd:date
properties	isRef  0 content  simple
source	<xsd:element name="Date" type="xsd:date"/>

element TrainDef/Time

diagram
type	xsd:time
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="Time" type="xsd:time" minOccurs="0"/>

complexType WeightDef

diagram
type	extension of xsd:nonNegativeInteger
properties	base  xsd:nonNegativeInteger
used by	elements  DangerWeightDef/GrossValue TrackDiagramDef/Vehicle/LoadLimitCFast TrackDiagramDef/Vehicle/LoadLimitCSlow DangerWeightDef/NetExplosiveValue DangerWeightDef/NetValue TrackDiagramDef/Vehicle/UnladenWeight
attributes	Name   Type   Use   Default   Fixed   annotation unit WeightUnit required
source	<xsd:complexType name="WeightDef">   <xsd:simpleContent>     <xsd:extension base="xsd:nonNegativeInteger">       <xsd:attribute name="unit" type="WeightUnit" use="required"/>     </xsd:extension>   </xsd:simpleContent> </xsd:complexType>

attribute WeightDef/@unit

type	WeightUnit
properties	isRef  0 use  required
facets	enumeration  g enumeration  kg enumeration  t
source	<xsd:attribute name="unit" type="WeightUnit" use="required"/>

simpleType AddressFieldDef

type	restriction of xsd:string
used by	elements  PartyDataDef/CustomerName AddressDataDef/Name AddressDataDef/Place AddressDataDef/StreetAndNumber
facets	minLength  0 maxLength  30
source	<xsd:simpleType name="AddressFieldDef">   <xsd:restriction base="xsd:string">     <xsd:minLength value="0"/>     <xsd:maxLength value="30"/>   </xsd:restriction> </xsd:simpleType>

simpleType AxlesDef

type	restriction of xsd:nonNegativeInteger
used by	element  TrackDiagramDef/Vehicle/Axles
facets	maxInclusive  99
annotation	documentation number of axles documentation Anzahl Achsen
source	<xsd:simpleType name="AxlesDef">   <xsd:annotation>     <xsd:documentation>number of axles</xsd:documentation>     <xsd:documentation xml:lang="DE">Anzahl Achsen</xsd:documentation>   </xsd:annotation>   <xsd:restriction base="xsd:nonNegativeInteger">     <xsd:maxInclusive value="99"/>   </xsd:restriction> </xsd:simpleType>

simpleType ChoiceDef

type	restriction of xsd:string
used by	elements  DangerousGoodsDef/EmptyUncleanedIndicator DangerousGoodsDef/ExceptedQuantityIndicator CL7Def/ExclusiveUseIndicator DangerousGoodsDef/LimitedQuantityIndicator DangerousGoodsDef/SalvageIndicator DangerousGoodsDef/WasteIndicator
facets	enumeration  Y enumeration  N
annotation	documentation choice Y = Yes / N = No
source	<xsd:simpleType name="ChoiceDef">   <xsd:annotation>     <xsd:documentation>choice Y = Yes / N = No </xsd:documentation>   </xsd:annotation>   <xsd:restriction base="xsd:string">     <xsd:enumeration value="Y"/>     <xsd:enumeration value="N"/>   </xsd:restriction> </xsd:simpleType>

simpleType CountryCodeDef

type	restriction of xsd:string
used by	elements  AddressDataDef/Country RailStationDef/CountryCode StationAreaDef/CountryCode
facets	pattern  [A-Z][A-Z]
annotation	documentation country according to ISO 3166 2-alpha-codes documentation Ländercode nach ISO 3166 (2-st. Buchstaben-Code)
source	<xsd:simpleType name="CountryCodeDef">   <xsd:annotation>     <xsd:documentation>country according to ISO 3166 2-alpha-codes</xsd:documentation>     <xsd:documentation xml:lang="DE">Ländercode nach ISO 3166 (2-st. Buchstaben-Code)</xsd:documentation>   </xsd:annotation>   <xsd:restriction base="xsd:string">     <xsd:pattern value="[A-Z][A-Z]"/>   </xsd:restriction> </xsd:simpleType>

simpleType CustomsProcedureDef

type	restriction of xsd:string
facets	maxLength  2
annotation	documentation for HABIS Zoll (HZO) according to HABIS code list A65 documentation Zollverfahren von HABIS Zoll (HZO) lt. HABIS-Schlüsselverzeichnis A65
source	<xsd:simpleType name="CustomsProcedureDef">   <xsd:annotation>     <xsd:documentation>for HABIS Zoll (HZO) according to HABIS code list A65</xsd:documentation>     <xsd:documentation xml:lang="DE">Zollverfahren von HABIS Zoll (HZO) lt. HABIS-Schlüsselverzeichnis A65</xsd:documentation>   </xsd:annotation>   <xsd:restriction base="xsd:string">     <xsd:maxLength value="2"/>   </xsd:restriction> </xsd:simpleType>

simpleType Decimal3

type	restriction of xsd:decimal
used by	complexType  TemperatureValue
facets	minInclusive  -999 maxInclusive  999 totalDigits  3 fractionDigits  0
source	<xsd:simpleType name="Decimal3">   <xsd:restriction base="xsd:decimal">     <xsd:maxInclusive value="999"/>     <xsd:minInclusive value="-999"/>     <xsd:totalDigits value="3"/>     <xsd:fractionDigits value="0"/>   </xsd:restriction> </xsd:simpleType>

simpleType EmptyFullDef

type	restriction of xsd:string
facets	enumeration  E enumeration  F
annotation	documentation choice E = empty /  F = full documentation E für Leer /  F für Beladen
source	<xsd:simpleType name="EmptyFullDef">   <xsd:annotation>     <xsd:documentation>choice E = empty /  F = full</xsd:documentation>     <xsd:documentation xml:lang="DE">E für Leer /  F für Beladen</xsd:documentation>   </xsd:annotation>   <xsd:restriction base="xsd:string">     <xsd:enumeration value="E"/>     <xsd:enumeration value="F"/>   </xsd:restriction> </xsd:simpleType>

simpleType HABISNumberDef

type	restriction of xsd:string
facets	pattern  HA[BE]\d{18}
annotation	documentation HABIS customs number received via HABIS ZOLL documentation HABIS-Zollnummer von HABIS ZOLL (HZO)
source	<xsd:simpleType name="HABISNumberDef">   <xsd:annotation>     <xsd:documentation>HABIS customs number received via HABIS ZOLL</xsd:documentation>     <xsd:documentation xml:lang="DE">HABIS-Zollnummer von HABIS ZOLL (HZO)</xsd:documentation>   </xsd:annotation>   <xsd:restriction base="xsd:string">     <xsd:pattern value="HA[BE]\d{18}"/>   </xsd:restriction> </xsd:simpleType>

simpleType LengthUnit

type	restriction of xsd:string
used by	attribute  LengthDef/@unit
facets	enumeration  m enumeration  dm enumeration  cm enumeration  mm
annotation	documentation m for meter, dm for decimeter, cm for centimeter, mm for millimeter
source	<xsd:simpleType name="LengthUnit">   <xsd:annotation>     <xsd:documentation>m for meter, dm for decimeter, cm for centimeter, mm for millimeter</xsd:documentation>   </xsd:annotation>   <xsd:restriction base="xsd:string">     <xsd:enumeration value="m"/>     <xsd:enumeration value="dm"/>     <xsd:enumeration value="cm"/>     <xsd:enumeration value="mm"/>   </xsd:restriction> </xsd:simpleType>

simpleType LoadingRequestDef

type	restriction of xsd:string
facets	maxLength  4
annotation	documentation Verladewunschcode
source	<xsd:simpleType name="LoadingRequestDef">   <xsd:annotation>     <xsd:documentation xml:lang="DE">Verladewunschcode</xsd:documentation>   </xsd:annotation>   <xsd:restriction base="xsd:string">     <xsd:maxLength value="4"/>   </xsd:restriction> </xsd:simpleType>

simpleType PlacardDef

type	restriction of xsd:string
facets	length  2
annotation	documentation Gefahrzettel, Nebenzettel
source	<xsd:simpleType name="PlacardDef">   <xsd:annotation>     <xsd:documentation xml:lang="DE">Gefahrzettel, Nebenzettel</xsd:documentation>   </xsd:annotation>   <xsd:restriction base="xsd:string">     <xsd:length value="2"/>   </xsd:restriction> </xsd:simpleType>

simpleType ReferenceText

type	restriction of xsd:string
used by	complexType  ReferenceDef
facets	minLength  1 maxLength  35
annotation	documentation Message references the sender / rail transportation company is using documentation Referenznummern der beteiligten Kommunikationspartner
source	<xsd:simpleType name="ReferenceText">   <xsd:annotation>     <xsd:documentation>Message references the sender / rail transportation company is using</xsd:documentation>     <xsd:documentation xml:lang="DE">Referenznummern der beteiligten Kommunikationspartner</xsd:documentation>   </xsd:annotation>   <xsd:restriction base="xsd:string">     <xsd:minLength value="1"/>     <xsd:maxLength value="35"/>   </xsd:restriction> </xsd:simpleType>

simpleType StationCodeDef

type	restriction of xsd:string
used by	elements  RailStationDef/Code StationAreaDef/Code
facets	pattern  \d{8}
source	<xsd:simpleType name="StationCodeDef">   <xsd:restriction base="xsd:string">     <xsd:pattern value="\d{8}"/>   </xsd:restriction> </xsd:simpleType>

simpleType TemperatureUnit

type	restriction of xsd:string
used by	attribute  TemperatureValue/@unit
facets	enumeration  Celsius
source	<xsd:simpleType name="TemperatureUnit">   <xsd:restriction base="xsd:string">     <xsd:enumeration value="Celsius"/>   </xsd:restriction> </xsd:simpleType>

simpleType TrackNumberDef

type	restriction of xsd:string
used by	element  TrackDiagramDef/TrackNumber
facets	pattern  \d{3}
annotation	documentation Gleisnummer, mit führenden Nullen angeben
source	<xsd:simpleType name="TrackNumberDef">   <xsd:annotation>     <xsd:documentation xml:lang="DE">Gleisnummer, mit führenden Nullen angeben</xsd:documentation>   </xsd:annotation>   <xsd:restriction base="xsd:string">     <xsd:pattern value="\d{3}"/>   </xsd:restriction> </xsd:simpleType>

simpleType TypeOfTransportDef

type	restriction of xsd:string
facets	enumeration  C enumeration  K
annotation	documentation K for Wagon Load and C for Container Load documentation K für Wagenladungsverkehr (konventioneller Verkehr) und C für Kombinierten Verkehr (Container)
source	<xsd:simpleType name="TypeOfTransportDef">   <xsd:annotation>     <xsd:documentation>K for Wagon Load and C for Container Load </xsd:documentation>     <xsd:documentation xml:lang="DE">K für Wagenladungsverkehr (konventioneller Verkehr) und C für Kombinierten Verkehr (Container)</xsd:documentation>   </xsd:annotation>   <xsd:restriction base="xsd:string">     <xsd:enumeration value="C"/>     <xsd:enumeration value="K"/>   </xsd:restriction> </xsd:simpleType>

simpleType VersionDef

type	restriction of xsd:string
used by	element  BusinessDocumentDef/Version
facets	pattern  \d{2}
source	<xsd:simpleType name="VersionDef">   <xsd:restriction base="xsd:string">     <xsd:pattern value="\d{2}"/>   </xsd:restriction> </xsd:simpleType>

simpleType WagonCategoryDef

type	restriction of xsd:string
used by	element  TrackDiagramDef/Vehicle/WagonCategory
facets	minLength  1 maxLength  15
annotation	documentation Wagengattung
source	<xsd:simpleType name="WagonCategoryDef">   <xsd:annotation>     <xsd:documentation xml:lang="DE">Wagengattung</xsd:documentation>   </xsd:annotation>   <xsd:restriction base="xsd:string">     <xsd:minLength value="1"/>     <xsd:maxLength value="15"/>   </xsd:restriction> </xsd:simpleType>

simpleType WagonNumberDef

type	restriction of xsd:string
used by	element  TrackDiagramDef/Vehicle/WagonNumber
facets	minLength  1 maxLength  12
source	<xsd:simpleType name="WagonNumberDef">   <xsd:restriction base="xsd:string">     <xsd:minLength value="1"/>     <xsd:maxLength value="12"/>   </xsd:restriction> </xsd:simpleType>

simpleType WeightUnit

type	restriction of xsd:string
used by	attribute  WeightDef/@unit
facets	enumeration  g enumeration  kg enumeration  t
annotation	documentation g for grams, kg for kilograms, t for tons documentation g = Gramm, kg = Kilogramm, t = Tonne
source	<xsd:simpleType name="WeightUnit">   <xsd:annotation>     <xsd:documentation>g for grams, kg for kilograms, t for tons</xsd:documentation>     <xsd:documentation xml:lang="DE">g = Gramm, kg = Kilogramm, t = Tonne</xsd:documentation>   </xsd:annotation>   <xsd:restriction base="xsd:string">     <xsd:enumeration value="g"/>     <xsd:enumeration value="kg"/>     <xsd:enumeration value="t"/>   </xsd:restriction> </xsd:simpleType>
